232-2601-00-0602

3M  232-2601-00-0602  芯片和元件插座, DIP, 32 触点, 2.54 mm, 3.66 mm, 镀金触芯

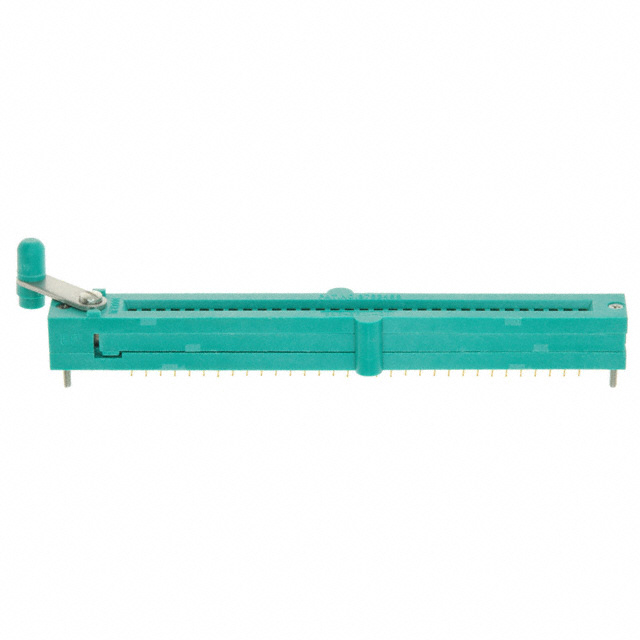

The is a 32-contact 0.1-inch in-line ZIP Strip Socket for single-in-line packages. It can be used in sets of two or more to create a socket for non-standard leaded packages on 0.1-inch centres. It has green glass filled polysulfone insulation and beryllium copper contacts.

.

Lever actuated zero insertion force mechanism

.

Ganging bar included to enable mass actuation

.

Accepts pins up to 0.025" square

.

Socket contact point of 0.085" below top surface of socket

.

1A Current rating

.

>1 x 10⁹R at 500VDC Insulation resistance

.

UL94V-0 Flammability rating

.

-55 to 150°C Temperature range
