2300HT-471-H-RC

固定电感器 470uH 15% Horizontal

470 µH 屏蔽 环形 器 4.5 A 140 毫欧最大 径向，水平（开放式）

得捷:
FIXED IND 470UH 4.5A 140 MOHM TH

立创商城:
470uH ±15% 4.5A 140mΩ

贸泽:
固定电感器 470uH 15% Horizontal

艾睿:

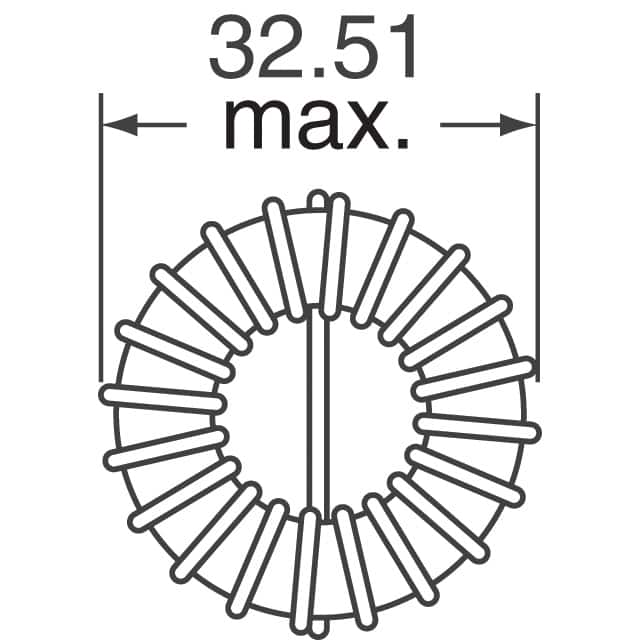

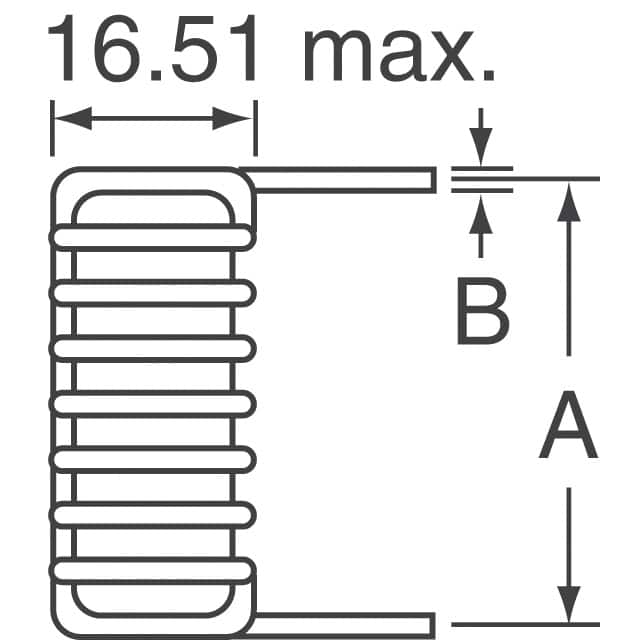

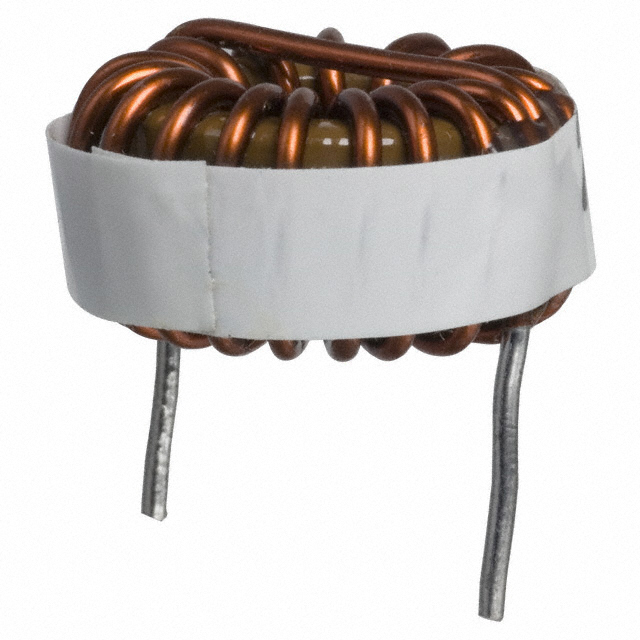

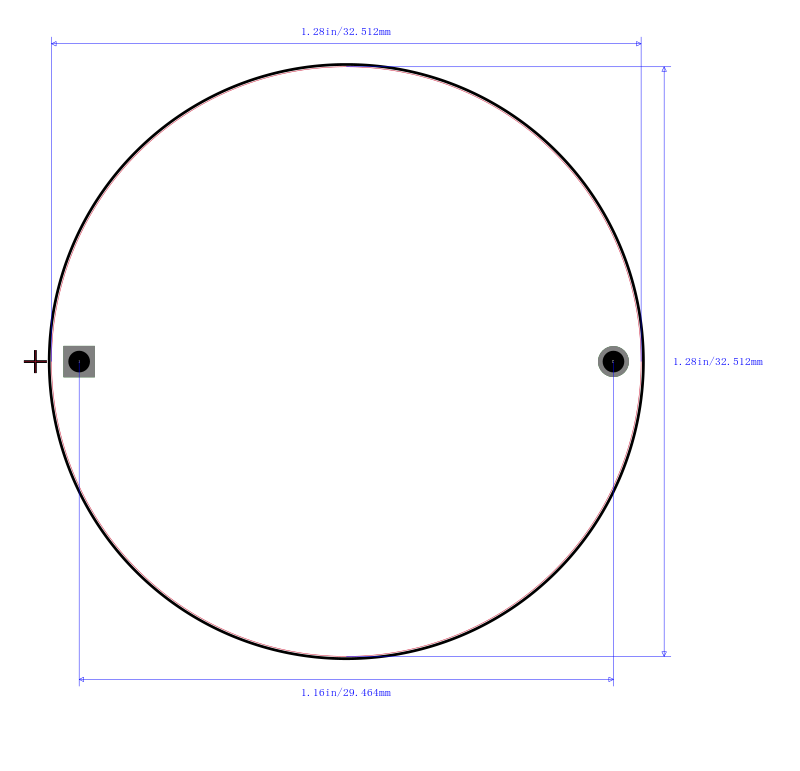

Your electrical design will benefit from this high current 2300HT-471-H-RC leaded inductor from Bourns. This part has a pitch of 29.46 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 200 °C. It has a tolerance of 15%. This device is made with toroid technology. This product is 16.51 mm tall with a diameter of 32.51 mm. It has an inductance of 470u/297.9uRated H. This leaded inductor has a maximum DC current of 4.5 A with a maximum resistance of 140m Ohm. Its test frequency is 1K Hz.

Verical:
Inductor High Current Toroid 470uH/297.9uH 15% 1KHz 4.5A 140mOhm DCR RDL

MASTER:
Inductor High Current Toroid 470uH/297.9uH 15% 1KHz 4.5A 140mOhm DCR RDL

Electro Sonic:
Inductor High Current Toroid 470uH/297.9uH 15% 1KHz 4.5A 140mOhm DCR RDL
