屏蔽的表面贴装电感器 Shielded Surface Mount Inductors
屏蔽 绕线 器 170 毫欧最大 非标准
得捷:
FIXED IND 47UH 850MA 170MOHM SMD
艾睿:

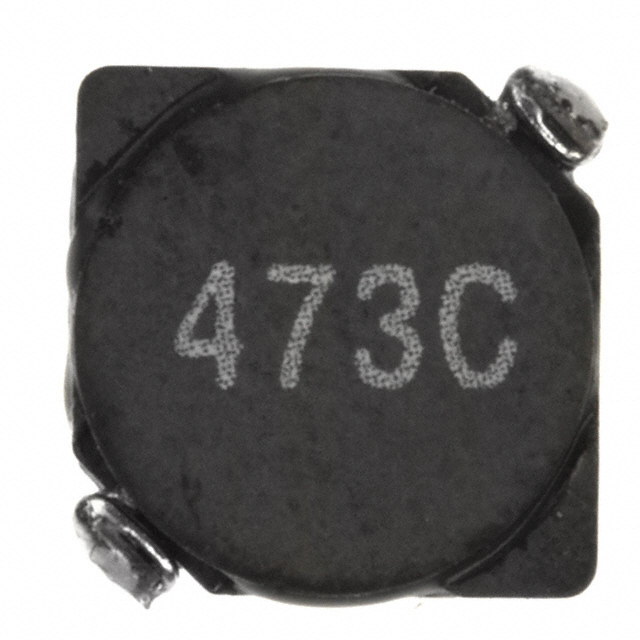

An ideal space-saving electronic component is this power 29473C surface mount inductor from Murata Power Solutions. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device utilizes bobbin core technology. This SMD inductor has a maximum DC current of 850m A with a maximum resistance of 170m Ohm. It has an inductance of 47u H. Its test frequency is 10K Hz. This product is 7.2 mm long, 4 mm tall and 7.2 mm deep.
安富利:
Ind Power Shielded Bobbin Core 47uH 10KHz 850mA T/R
额定电流 850 mA
电感 47 µH
电阻DC） 170 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.17 Ω
安装方式 Surface Mount
引脚数 2

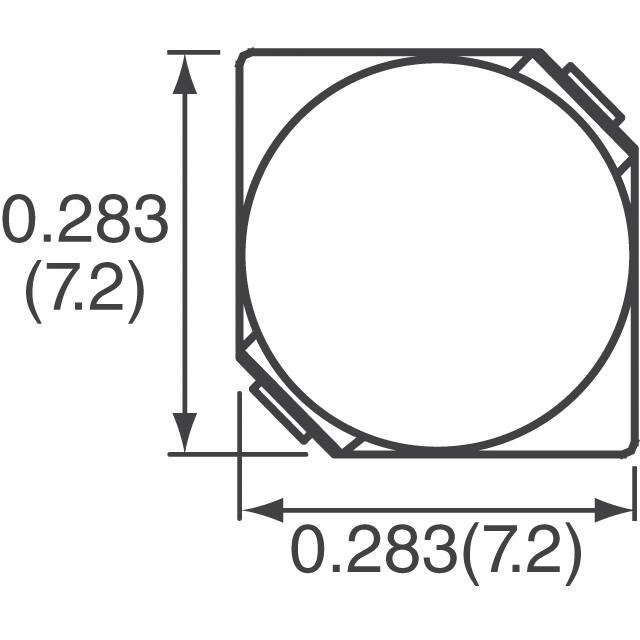

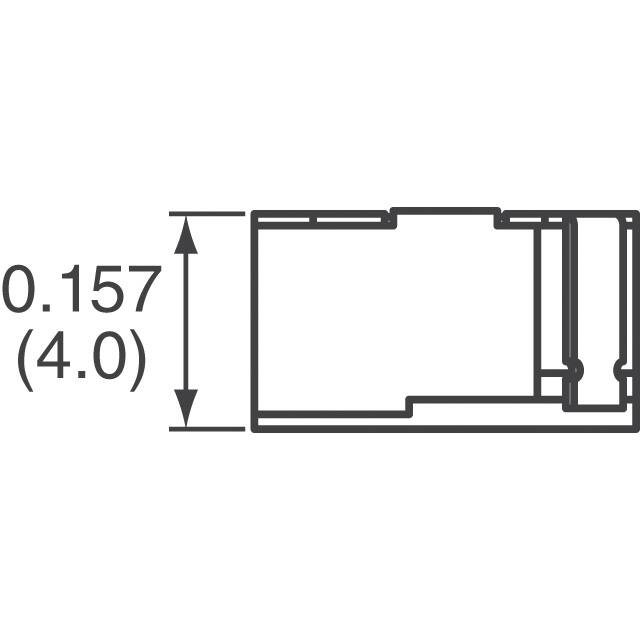

封装 0.283" L x 0.283" W x 0.157" H 7.20mm x 7.20mm x 4.00mm
高度 4 mm
封装 0.283" L x 0.283" W x 0.157" H 7.20mm x 7.20mm x 4.00mm
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
