2963336概述

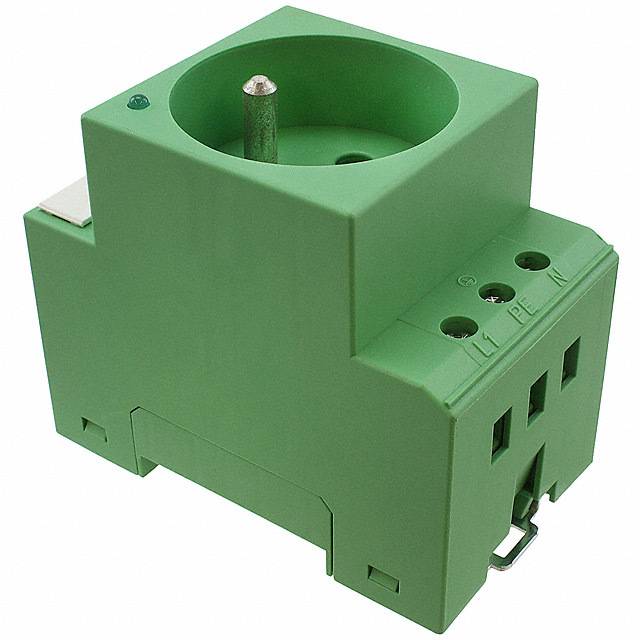

cabinet socket; mounts on DIN rails; screw conn; w/light indicator; green

电源接入连接器 插座,母型插口 CEE 7/5 DIN 轨道


得捷:
PWR ENT RCPT CEE 7/5 DIN SCREW


艾睿:
Never worry about your multiple wire connection becoming undone by using this 2963336 connector socket from Phoenix Contact.


Allied Electronics:
cabinet socket; mounts on DIN rails; screw conn; w/light indicator; green


Verical:
Control cabinet socket, for mounting on DIN rails and in the service interface, with screw connection, with light indicator, housing color: green, national version: F


Online Components:
Conn Socket SKT Screw


Electro Sonic:
Conn Socket SKT Screw


2963336中文资料参数规格
技术参数

额定电流 16 A

针脚数 3

额定电流Max 16 A

工作温度Max 60 ℃

工作温度Min -20 ℃

额定电压Max 250 VAC

额定电压 250 VAC

封装参数

安装方式 Screw

外形尺寸

长度 75 mm

宽度 45 mm

高度 70.5 mm

物理参数

触点材质 Brass

工作温度 -20℃ ~ 60℃

其他

产品生命周期 Obsolete

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买2963336
型号: 2963336
描述:cabinet socket; mounts on DIN rails; screw conn; w/light indicator; green
