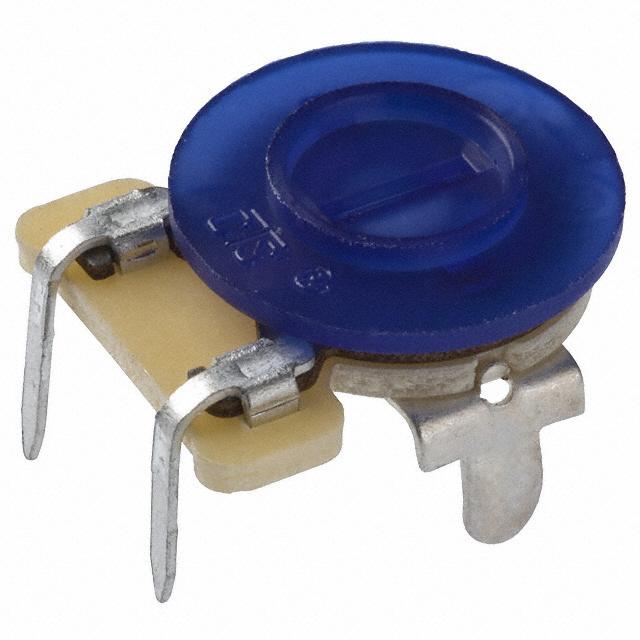

Trimmer, Carbon Composition, 0.2W, 500Ω, 350V, 20% +/-Tol, 1 Turns, 15.08MM, ROUND, 3Pins, ROHS COMPLIANT
Not sure what resistance value you need? No problem, applying this potentiometer from will allow you to change the resistance in a matter of seconds. This product has a resistance value of 500 Ohm. This durable part has a power rating of 0.25 1/4 W. This device is made with carbon composition technology. This product is 15.1 mm long, 11.7 mm tall and 18.6 mm deep. The 201UR501B part has a pin termination style. This part has an operating temperature of -35 to 85 °C. It has a tolerance of 20%.
容差 ±20 %
额定功率 0.25 W
电阻 500 Ω
阻值偏差 ±20 %
工作温度Max 85 ℃
工作温度Min -35 ℃
额定电压 350 VDC
安装方式 Through Hole
封装 Square - 0.732" L x 0.594" W x 0.268" H 18.60mm x 15.10mm x 6.80mm
长度 15.1 mm
宽度 18.6 mm
高度 11.7 mm
直径 15.1 mm
封装 Square - 0.732" L x 0.594" W x 0.268" H 18.60mm x 15.10mm x 6.80mm
颜色 Blue
工作温度 -35℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533408070
