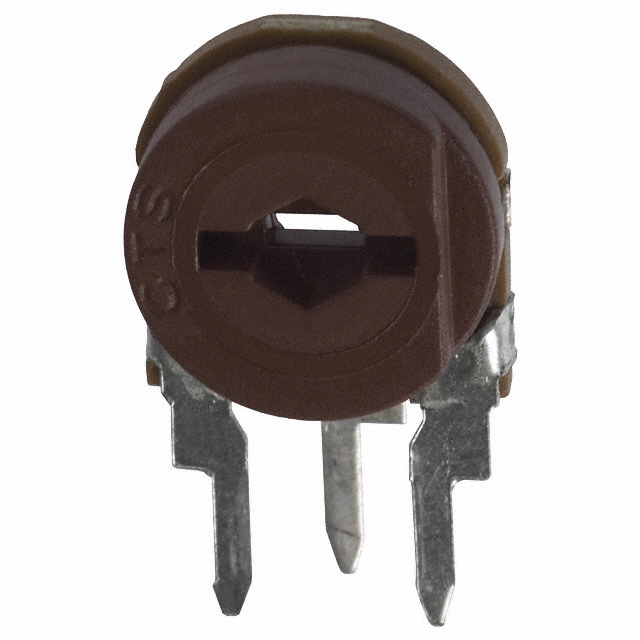

Res Carbon Composition Trimmer 500KΩ 20% 3/20W 1Elec/1MechTurn 9.4 X 5.3 X 11.9mm Pin Thru-Hole
500 kOhms 0.15W PC 引脚 通孔 微调电位计 碳 1.0 匝 侧面调节
得捷:
TRIMMER 500K OHM 0.15W PC PIN
贸泽:
Trimmer Resistors - Through Hole 500Kohms 20% BRWN
艾睿:
Res Carbon Composition Trimmer 500K Ohm 20% 0.15W 1Elec/1MechTurns 9.4 X 5.3 X 11.9mm Pin Thru-Hole
安富利:
Res Carbon Composition Trimmer 500K Ohm 20% 3/20W 1Elec/1MechTurn 9.4 X 5.3 X 11.9mm Pin Thru-Hole
Chip1Stop:
Res Carbon Composition Trimmer 500K Ohm 20% 0.15W 1Elec/1MechTurns 9.4 X 5.3 X 11.9mm Pin Thru-Hole Bulk
Verical:
Res Carbon Composition Trimmer 500K Ohm 20% 0.15W 1Elec/1MechTurns 9.4 X 5.3 X 11.9mm Pin Thru-Hole Bulk
Win Source:
TRIMMER 500K OHM 0.15W PC PIN / 500 kOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
容差 ±20 %
额定功率 0.15 W
电阻 500 kΩ
工作温度Max 85 ℃
工作温度Min -35 ℃
安装方式 Through Hole

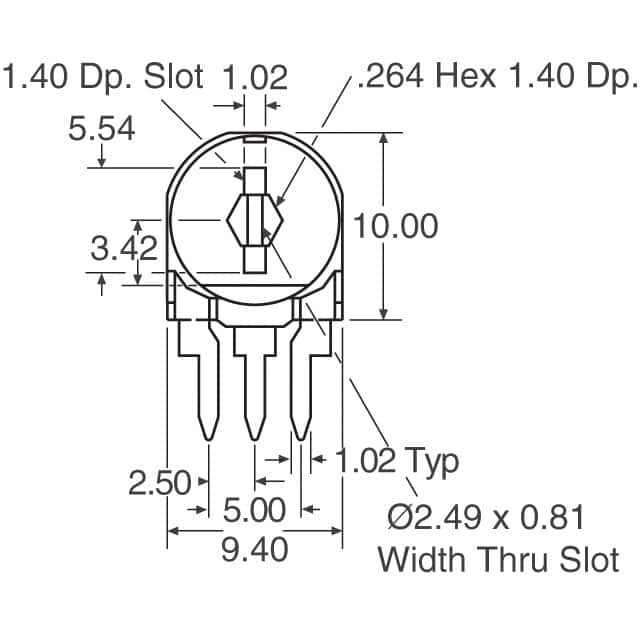

封装 Square - 0.368" L x 0.165" W x 0.394" H 9.35mm x 4.20mm x 10.00mm
长度 9.4 mm
宽度 5.3 mm
高度 11.9 mm
封装 Square - 0.368" L x 0.165" W x 0.394" H 9.35mm x 4.20mm x 10.00mm
工作温度 -35℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
