STANDARD MOTOR 130 RPM 5VDC

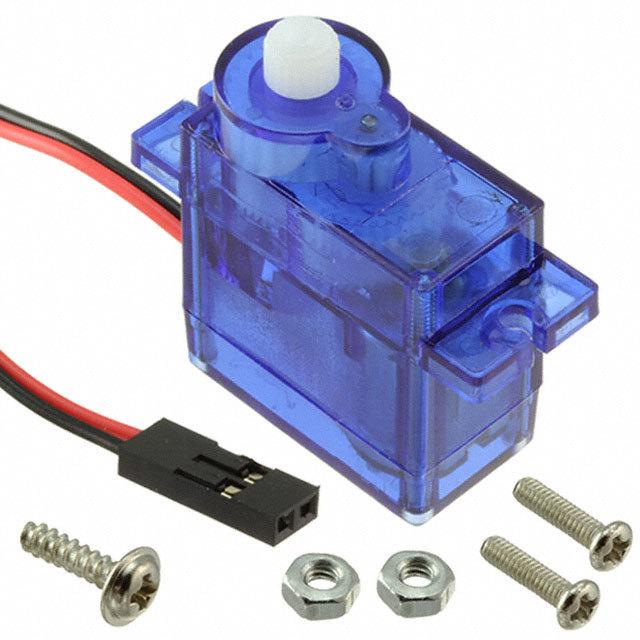

This tiny DC Motor in Micro Servo Body is an interesting motor - it"s the same size and shape as our micro servo but it isn"t a servo. It"s more like a DC motor + plastic gear-train in a box. It"s not a super powerful motor, it would do well as a little robot wheel. It"s also a lot less expensive than a micro servo continuous or non-continuous because there is no control board inside. Controlling speed is done by PWM"ing the power leads, controlling direction is done by swapping the power polarity - just like any brushed DC motor.
Runs from 4-6VDC, we"ve powered it with a Lipoly and 3 alkaline, or 4 NiMH batteries with success. You cannot control this directly from a microcontroller pin! You must have a H-bridge such as a L293D, TB6612 or a Motor shield, Motor HAT or DC Motor + Stepper FeatherWing.
Motor comes with 2x screws and 2x nuts for mounting to a chassis. No flanges or horns included - it"s intended to mate with our little wheels, there"s a screw to attach once they"re plugged together. Build a robot vehicle of your own with these little motors driving it!
**SPECIFICATIONS:**
Dimensions: 32.3mm x 12.3mm x 29.9mm / 1.3" x 0.49" x 1.2"
Spline Count: 21
Weight: 8.4g
No load speed: 110RPM 4.8v / 130RPM 6v
Running Current at no load: 100mA 4.8v / 120mA 6v
Peak Stall Torque 4.8v: 1.3 kg/cm / 18.09 oz/in
Peak Stall Torque 6v: 1.5 kg/cm / 20.86 oz/in
Stall Current: 550mA 4.8v / 650mA 6v
