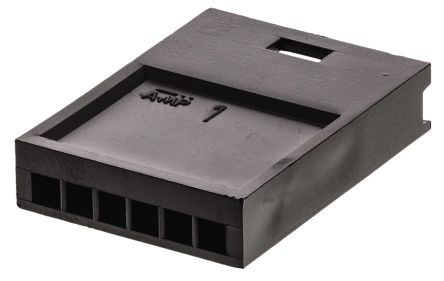

280630

AMPMODU 2.54 mm 节距引脚外壳是 TE Connectivity 意大利系列的一部分。公引线连接器，节距 2.54mm 有关合适的公触点，请参见库存号 509-2183 ### 2.54mm TE Connectivity AMPMODU™ 系列 – MOD 2### 2.54mm Tyco AMPMODU™ 系列 – MOD 2可互相匹配的一系列产品，中心线 2.54 毫米（0.1 英寸），适合线到板和线到线应用。 技术规格 --- 额定电流 | 3 A 绝缘电阻 | 1000 MΩ 绝缘材料 | Noryl UL94V-0 针座柱 | 镍镀金黄铜 针座柱 | 镀锡磷青铜 电镀压接触点 | 镀锡磷青铜 电镀压接触点 | 镀金磷青铜 温度 | -55°C 至 +125°C

引脚外壳

这些 AMPMODU 2.54 mm 节距引脚外壳是 意大利系列的一部分。

公引线，节距 2.54mm

有关合适的公触点，请参见库存号 509-2183

### 2.54mm Tyco AMPMODU™ 系列 – MOD 2

可互相匹配的一系列产品，中心线 2.54 毫米（0.1 英寸），适合线到板和线到线应用。

得捷:
CONN PLUG HSG 6POS 2.54MM

欧时:
TE Connectivity 连接器外壳, AMPMODU Mod II 系列, 2.54mm节距, 1行, 6路 母

立创商城:
外壳

e络盟:
连接器外壳, AMPMODU IV/V Series, 插座, 6 路, 2.54 mm, AMP AMPMODU IV/V系列插针和插座触芯

艾睿:
Do you need a solution for housing discrete wires because a direct socket to board linkage is not functional? Then this 280630 discrete wire housing from TE Connectivity is perfect for you! This RCP connector has 6 RCP contacts. This is a 1-row connector. It has a straight body orientation. Its pitch is 2.54 mm. It has a receptacle type gender. This device has a maximum current rating of 3 A/contact. 280630 is housed in black thermoplastic. This rectangle connector has an operating temperature of -65 to 105 °C. This product is 17.5 mm long, 5 mm tall and 23.8 mm deep. Its wire is 22-30 AWG.

Allied Electronics:
AMPMODU Mod II Series 2.54mm Pitch 6 Way 1 Row Female Straight PCB Housing

安富利:
Conn Housing RCP 6 POS 2.54mm Crimp ST

Verical:
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Black Bag

MASTER:
AMPMODU II PIN HOUSING SINGLE ROW, CRIMP SNAP-IN

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
MOD II HSG

Electro Sonic:
AMPMODU II COSI PIN HSG, SGL ROW, 6 POS.
