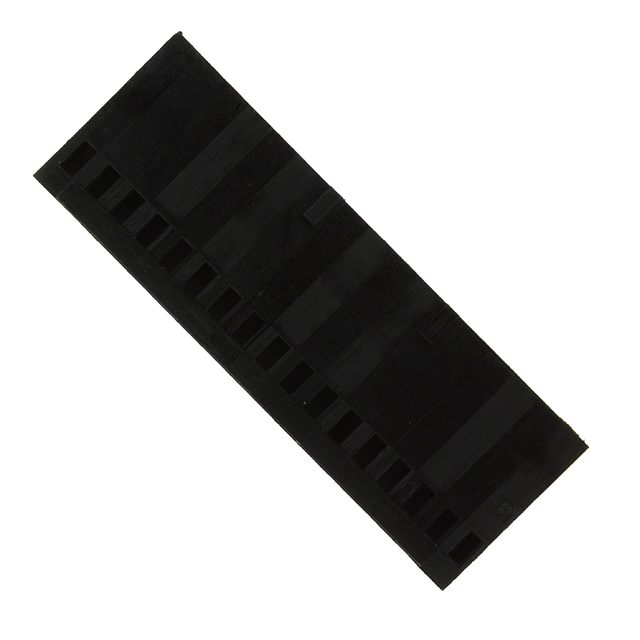

Conn Housing RCP 34POS 2.54mm Crimp ST Cable Mount
34 MODIV HSG COMP DR .100 POL
Product Highlights
Housing
Not Preloaded
Number of Positions = 34
Housing Type = Receptacle
Number of Rows = Dual
得捷:
CONN HOUSING 34POS .100 POL DUAL
立创商城:
2-87631-9
艾睿:
TE Connectivity&s;s 2-87631-9 discrete wire housing provides a durable connection for discrete wires. This RCP connector has 34 RCP contacts. It has a straight body orientation. Its pitch is 2.54 mm. It has a receptacle type gender. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 3 A/contact. This rectangle connector has an operating temperature of -65 to 105 °C. 2-87631-9 is housed in black nylon. Its wire is 20-30 AWG. This product is 43.18 mm long and 15.24 mm.
安富利:
Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount
Chip1Stop:
Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount
Verical:
Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount Black Package
Newark:
# AMP - TE CONNECTIVITY 2-87631-9 34 MODIV HSG COMP DR .100 POL New
MASTER:
CONNECTOR, MOD IV, CRIMP SNAP-IN, WITH DETENT
Powell:
.100 AMPMODU Headers, Housings & Contacts
Online Components:
34 MODIV HSG COMP DR .100 POL
Electro Sonic:
34 MODIV HSG COMP DR .100 POL
触点数 34
极性 Female
额定电压AC 250 V
绝缘电阻 5000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 34
触点额定电流 3.00 A
制动器数量 2
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
封装 -
引脚间距 2.54 mm
高度 15.24 mm
封装 -
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Beryllium Copper
工作温度 -65℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2-87631-9 TE Connectivity 泰科 | 当前型号 | 当前型号 |
0901420034 莫仕 | 功能相似 | 2-87631-9和0901420034的区别 |
