集管和线壳 CONN HOUSING 11 POS SINGLE ROW
11 Rectangular Connectors - Housings Receptacle Black 0.100" 2.54mm
得捷:
CONN RCPT HSG 11POS 2.54MM
贸泽:
集管和线壳 CONN HOUSING 11 POS SINGLE ROW
艾睿:

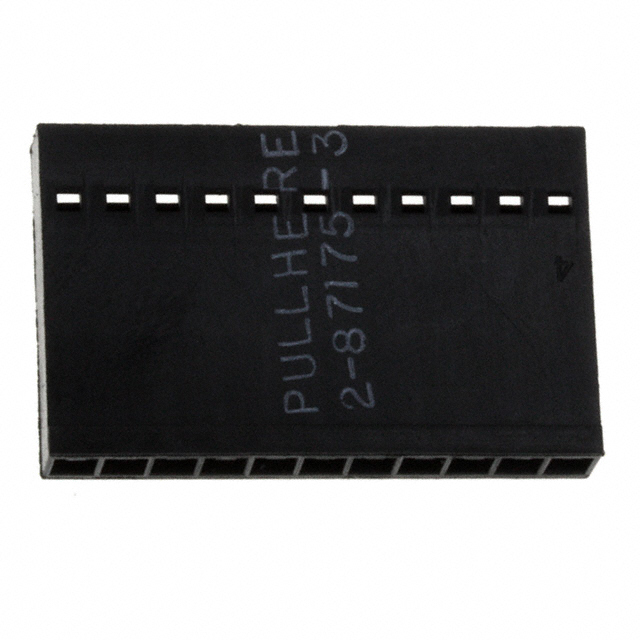

For all your modern day data transfer needs, this 2-87175-3 discrete wire housing from TE Connectivity will make a durable connection. This RCP connector has 11 RCP contacts. It has a receptacle type gender. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. This product is 28.34 mm long, 4.44 mm tall and 17.78 mm deep. This rectangle connector has an operating temperature of -65 to 105 °C. 2-87175-3 is housed in black polyester. Its wire is 22-30 AWG.
Powell:
.100 AMPMODU Headers, Housings & Contacts
Electro Sonic:
11 LOCKING CLIP HSG SR MRKD
触点数 11
额定电压AC 250 V
绝缘电阻 5000 MΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 11
触点额定电流 3.00 A
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
引脚间距 2.54 mm
长度 28.3 mm
宽度 17.8 mm
高度 17.78 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
工作温度 -65℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
