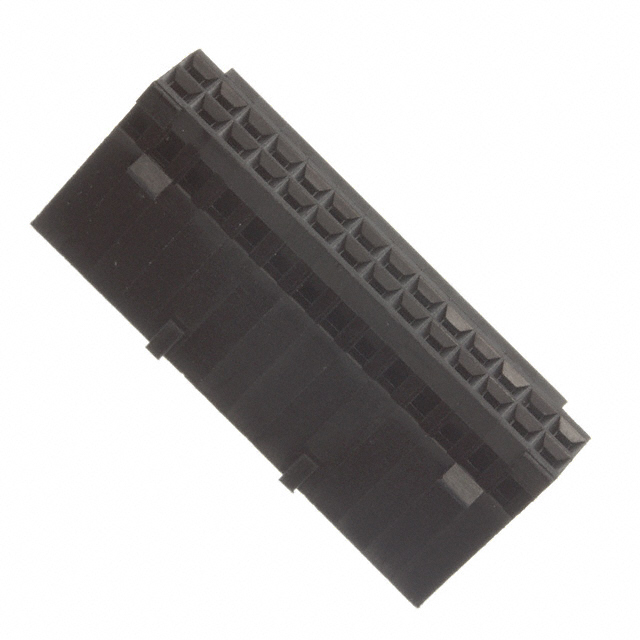

Conn Housing RCP 28POS 2.54mm Crimp ST Cable Mount
28 MODIV HSG COMP DR .100 POL
得捷:
CONN RCPT HSG 28POS 2.54MM
贸泽:
Headers & Wire Housings 28 HSG COMP DR .1POL
艾睿:
Think of TE Connectivity&s;s 2-87631-3 discrete wire housing the next time you need a connection between two circuits but a direct linkage is not possible. This RCP connector has 28 RCP contacts. It has a maximum voltage rating of 250 VAC. It has a receptacle type gender. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. This rectangle connector has an operating temperature of -65 to 105 °C. Its wire is 20-30 AWG. This product is 35.56 mm long and 15.24 mm. 2-87631-3 is housed in black nylon.
安富利:
Conn Housing RCP 28 POS 2.54mm Crimp ST Cable Mount
Verical:
Conn Housing RCP 28 POS 2.54mm Crimp ST Cable Mount Black Package
MASTER:
CONNECTOR, MOD IV, CRIMP SNAP-IN, WITH DETENT
Powell:
.100 AMPMODU Headers, Housings & Contacts
Online Components:
28 MODIV HSG COMP DR .100 POL
Electro Sonic:
28 MODIV HSG COMP DR .100 POL
触点数 28
额定电压AC 250 V
额定电流 3 A
绝缘电阻 5000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 28
触点额定电流 3.00 A
制动器数量 2
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
额定电压 250 V
引脚间距 2.54 mm
高度 15.24 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Beryllium Copper
工作温度 -65℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
