2-1740533-2

2-1740533-2图片1
2-1740533-2图片2
2-1740533-2图片3
2-1740533-2图片4
2-1740533-2图片5
2-1740533-2图片6

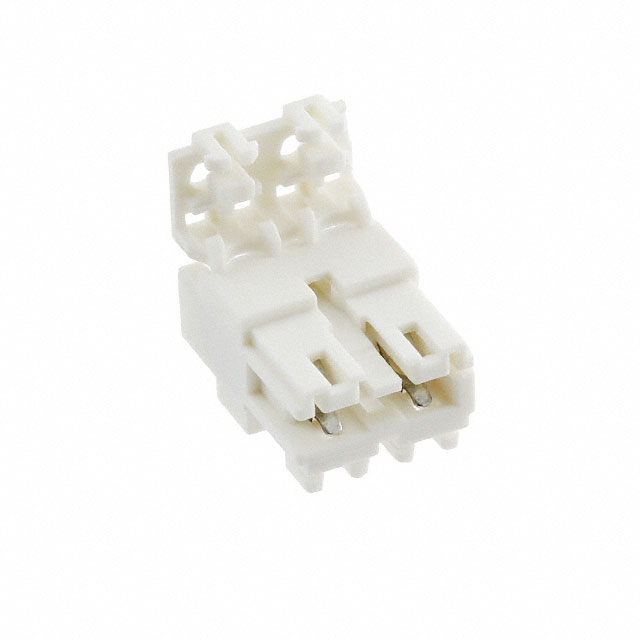

2-1740533-2图片7
2-1740533-2图片8
2-1740533-2图片9
2-1740533-2图片10
2-1740533-2概述

Conn Power RCP 2POS 5mm IDT RA Cable Mount 2 Terminal 1Port

AMP DUOPLUG POW CONNECTOR


得捷:
CONN RCPT 2POS IDC TIN


艾睿:
Harsh and stressful environments are no match for this robust 2-1740533-2 power connector from TE Connectivity. This RCP connector has 2 RCP contacts. This connector has a single port. It has a receptacle type gender. It has a straight body orientation. Its pitch is 5 mm. Its 5 terminals use the idt termination method.


安富利:
Conn Power RCP 2 POS 5mm IDT RA Cable Mount 2 Terminal 1 Port


Verical:
Conn Card Edge RCP 2 POS 5mm IDT RA Cable Mount 5 Terminal 1 Port Automotive Box


Newark:
# AMP - TE CONNECTIVITY  2-1740533-2  AMP DUOPLUG POW CONNECTOR New


MASTER:
AMP DUOPLUG POW CONNECTOR


Online Components:
AMP DUOPLUG POW CONNECTOR


Electro Sonic:
AMP DUOPLUG POW CONNECTOR


2-1740533-2中文资料参数规格
技术参数

触点数 2

触点电镀 Tin

排数 1

方向 Right Angle

易燃性等级 UL 94 V-0

针脚数 2

额定电流Max 6A/触头

工作温度Max 110 ℃

工作温度Min -40 ℃

额定电压Max 250 V

外形尺寸

高度 7.3 mm

物理参数

外壳颜色 Natural

颜色 Natural

工作温度 -40℃ ~ 110℃

其他

产品生命周期 Active

包装方式 Box

制造应用 Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买2-1740533-2
型号: 2-1740533-2
描述:Conn Power RCP 2POS 5mm IDT RA Cable Mount 2 Terminal 1Port
