2-179694-7

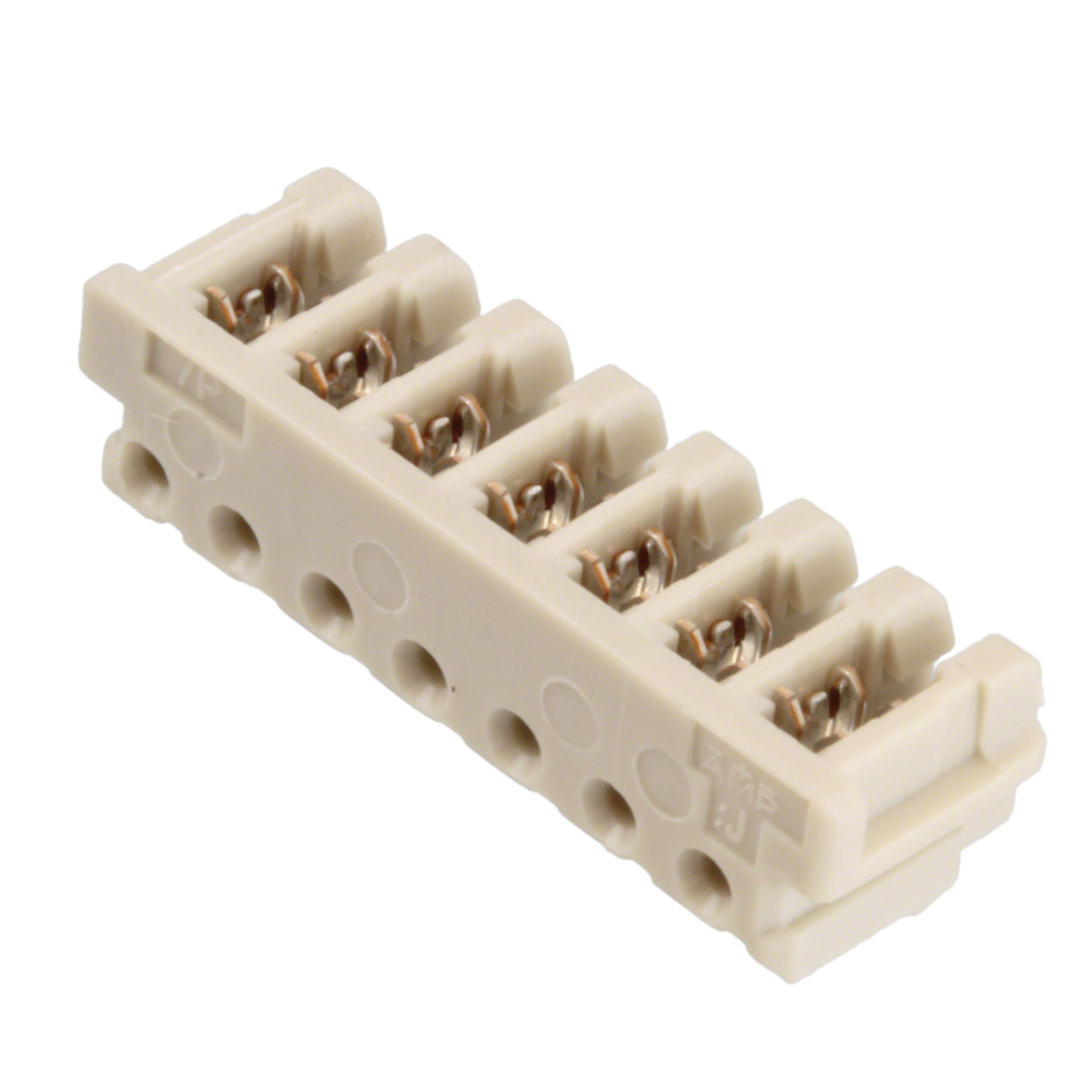

2-179694-7图片1
2-179694-7图片2
2-179694-7图片3
2-179694-7图片4
2-179694-7图片5
2-179694-7图片6
2-179694-7图片7
2-179694-7图片8
2-179694-7图片9
2-179694-7图片10
2-179694-7概述

集管和线壳 CT MT REC ASSY 7P GRAY

CT MT REC ASSY 7P GRAY

Product Highlights

Connector

Connector Type = Blindmate, MT Mass Termination

Mating Type = Receptacle

Number of Positions = 7

Number of Rows = 1


得捷:
CONN RCPT 7POS IDC 24AWG TIN


贸泽:
集管和线壳 CT MT REC ASSY 7P GRAY


艾睿:
Mounting this idc connector 2-179694-7 header connector from TE Connectivity to your printed circuit board can help you support multiple physical configuration options. This RCP connector&s;s 7 contacts that are made out of phosphor bronze and plated with pre-tin. Its pitch is 2 mm. It has a receptacle type gender. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 125 VDC|125VAC. This connector has an operating temperature of -30 to 105 °C. This product is 16 mm long, 4.6 mm tall and 5.1 mm deep. 2-179694-7 is housed in gray polybutylene terephthalate. It uses the idt termination method.


安富利:
Conn IDC Connector RCP 7 POS 2mm IDT RA Cable Mount Bag


Verical:
CT MT REC ASSY 7P GRAY


Newark:
# AMP - TE CONNECTIVITY  2-179694-7  CT MT REC ASSY 7P GRAY New


MASTER:
mt rece hsg assy


Powell:
2mm AMP CT


Online Components:
CT MT REC ASSY 7P GRAY


Electro Sonic:
CT MT REC ASSY 7P GRAY


2-179694-7中文资料参数规格
技术参数

触点数 7

线规 24 AWG

触点电镀 Tin

排数 1

易燃性等级 UL 94 V-0

针脚数 7

工作温度Max 105 ℃

工作温度Min -40 ℃

接触电阻Max 20 mΩ

外形尺寸

高度 4.6 mm

物理参数

外壳颜色 Gray

颜色 Gray

触点材质 Phosphor Bronze

工作温度 -30℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Power, Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买2-179694-7
型号: 2-179694-7
描述:集管和线壳 CT MT REC ASSY 7P GRAY
