2-111196-7

Conn IDC Connector RCP 16POS 1.27mm IDT RA Cable Mount

16 位置矩形连 插座 IDC 镀金 30-32AWG

得捷:
CONN RCPT 16P IDC 30-32AWG GOLD

贸泽:
Headers & Wire Housings 016 RCPT SYSTEM 50 30 DPLX

艾睿:

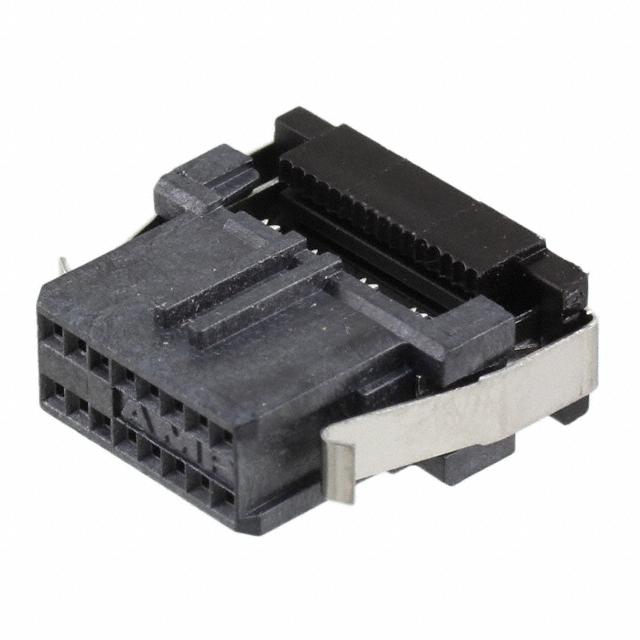

This idc connector 2-111196-7 header connector from TE Connectivity is used for jumper posts to support physical configuration options on printed circuit boards. This RCP connector&s;s 16 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 30 VAC. It has a right angle body orientation. This is a 2-row connector. It has a receptacle type gender. Its pitch is 1.27 mm. This device has a maximum current rating of 0.5 A/contact. The item will be shipped in tray orientation. This product is 16.76 mm long, 12.32 mm tall and 6.45 mm deep. This connector has an operating temperature of -65 to 105 °C. It uses the idt termination method. 2-111196-7 is housed in black liquid crystal polymer.

安富利:
Conn IDC Connector RCP 16 POS 1.27mm IDT RA Cable Mount

MASTER:
AMP-LATCH SYSTEM 50, RECEPTACLE ASSEMBLY, 0.64[.025] , IDC

Powell:
.050 X .100 AMPMODU System 50

Online Components:
016 RCPT SYSTEM 50 30 DPLX
