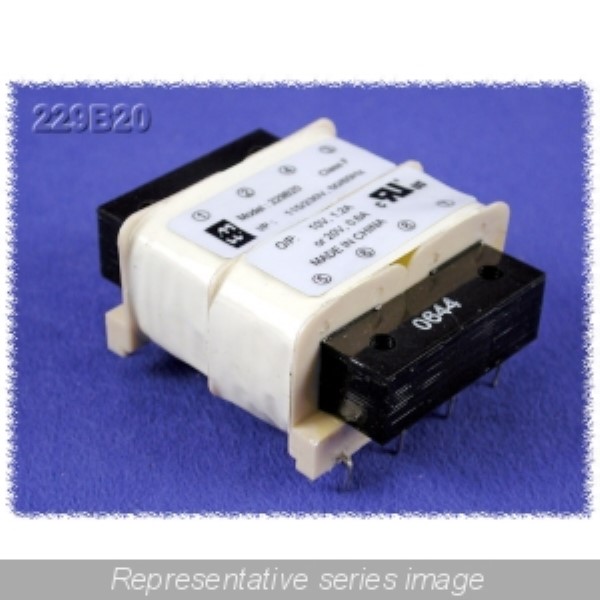

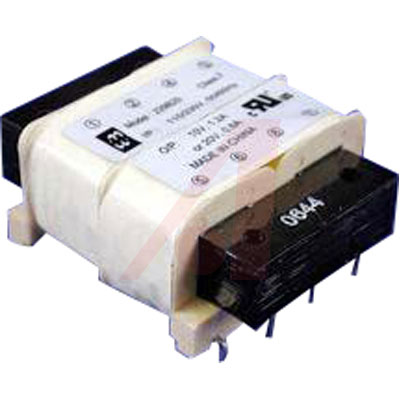

HAMMOND 229D20 Isolation Transformer, Low Voltage, 48VA, 1 x 115V, 1 x 230V, 20V, 2 x 10V, 2.4A
**Features:**
* CSA Certified File #LR3902
* UL Recognized File #E50394
* Universal Dual Primary 115/230 V, 50/60 Hz
* Low Primary to Secondary Coupling
* Balanced Windings
* No Electrostatic Shield Required
* Low EMF Radiation Due to Semi-Toroidal Design
* Dual — Split Bobbin Design
* High Insulation — Hi-Pot of 1,750 VRMS
* Class B Insulation — 130°C
* Low Profile Mounting
得捷:
XFRMR SEMI-TORO 48VA THRU HOLE
贸泽:
Power Transformers LOW PROFILE
艾睿:
Power Transformer 1750Vrms 48VA 8 Terminal PC Pin Thru-Hole
Allied Electronics:
Transformer, split bobbin, 48VA, pri: 115/230V, sec: 2.4A 20V or 4.8A 10V, pc
Newark:
# HAMMOND 229D20 Isolation Transformer, Low Voltage, 48 VA, 1 x 115V, 1 x 230V, 20V, 2 x 10V, 2.4 A
MASTER:
transformer - power, low volt, pc mount
Online Components:
transformer - power, low volt, pc mount
