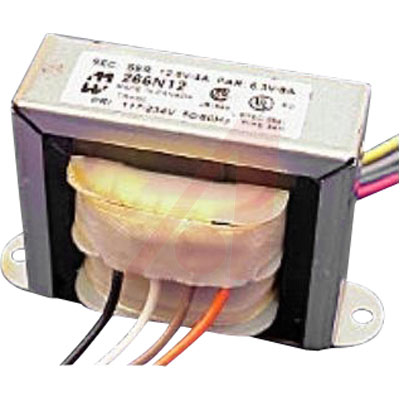

Transformer; 18.9VA; Chassis; Pri:117/234VAC; Sec:Ser 12.6VCT, Par 6.3V
**Features:**
* Dual Primary 117/234 VAC, 50/60 Hz
* All Units Have Dual Secondaries, They Can Be Connected as a Center Tapped Winding or Used Individually
* Open Style, Chassis Mount with Minimum 6" Long Leads
* Dual Bobbin Design — No Electrostatic Shield Required
* Class B Insulation 130°C
* Hipot Test of 2,000 VRMS
* UL Listed — E50394, and CSA Certified — LR3902
* Meets NAFTA Requirements
得捷:
PWR XFMR LAMINATED 18.9VA CHAS
贸泽:
Power Transformers DualPrimarySecondary 18.9VA/12.6V CT@1.5A
艾睿:
Power Transformer 2000Vrms 18.9VA 8 Terminal Wire Lead Flange Mount
Allied Electronics:
Transformer; 18.9VA; Chassis; Pri:117/234VAC; Sec:Ser 12.6VCT, Par 6.3V
Newark:
# HAMMOND 266K12 POWER TRANSFORMER
MASTER:
transformer - filament and low voltage rectifier/open
Online Components:
transformer - filament and low voltage rectifier/open
