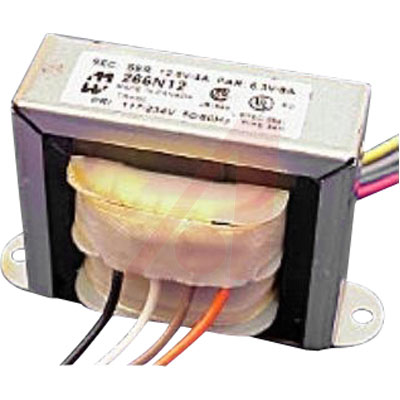

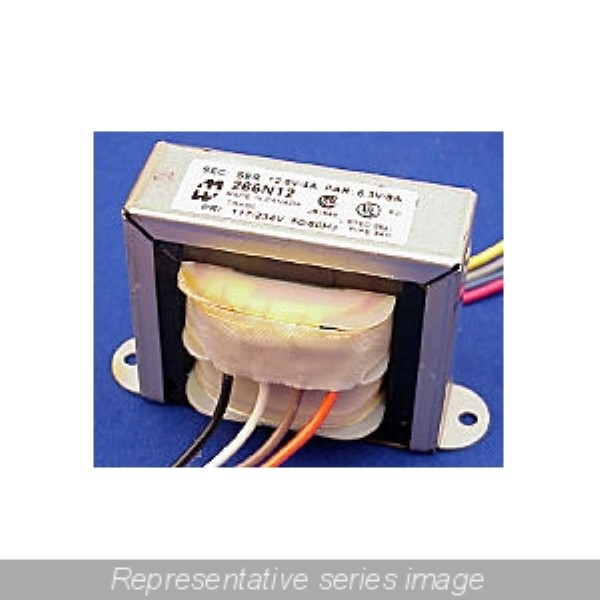

Transformer; 40VA; Chassis; Pri:117/234VAC; Sec:Ser 20VCT, Par 10V; Dual
**Features:**
* Dual Primary 117/234 VAC, 50/60 Hz
* All Units Have Dual Secondaries, They Can Be Connected as a Center Tapped Winding or Used Individually
* Open Style, Chassis Mount with Minimum 6" Long Leads
* Dual Bobbin Design — No Electrostatic Shield Required
* Class B Insulation 130°C
* Hipot Test of 2,000 VRMS
* UL Listed — E50394, and CSA Certified — LR3902
* Meets NAFTA Requirements
得捷:
PWR XFMR LAMINATED 40VA CHAS MT
Allied Electronics:
Transformer; 40VA; Chassis; Pri:117/234VAC; Sec:Ser 20VCT, Par 10V; Dual
Newark:
# HAMMOND 266L20 POWER TRANSFORMER
MASTER:
transformer - filament and low voltage rectifier/open
Online Components:
transformer - filament and low voltage rectifier/open
