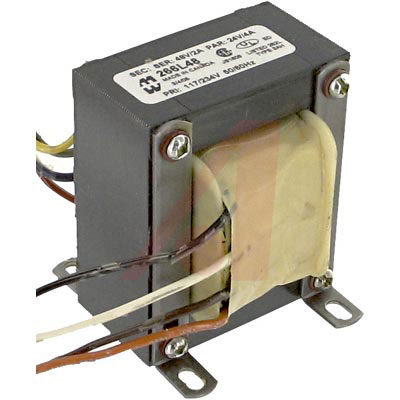

Isolation Transformer, Open Style, 96VA, 1 x 234V, 2 x 117V, 2 x 24V, 4A
**Features:**
* Dual Primary 117/234 VAC, 50/60 Hz
* All Units Have Dual Secondaries, They Can Be Connected as a Center Tapped Winding or Used Individually
* Open Style, Chassis Mount with Minimum 6" Long Leads
* Dual Bobbin Design — No Electrostatic Shield Required
* Class B Insulation 130°C
* Hipot Test of 2,000 VRMS
* UL Listed — E50394, and CSA Certified — LR3902
* Meets NAFTA Requirements
得捷:
PWR XFMR LAMINATED 96VA CHAS MT
艾睿:
Power Transformer 2000Vrms 96VA 8Term. Wire Lead Flange Mount
Allied Electronics:
Transformer; 96VA; Chassis; Pri:117/234VAC; Sec:Ser 48VCT; Par 24V; Dual
Verical:
Power Transformer 2000Vrms 96VA 8 Terminal Wire Lead Flange Mount
Newark:
Isolation Transformer, Open Style, 96 VA, 1 x 234V, 2 x 117V, 2 x 24V, 4 A
MASTER:
transformer - filament and low voltage rectifier/open
Online Components:
transformer - filament and low voltage rectifier/open
