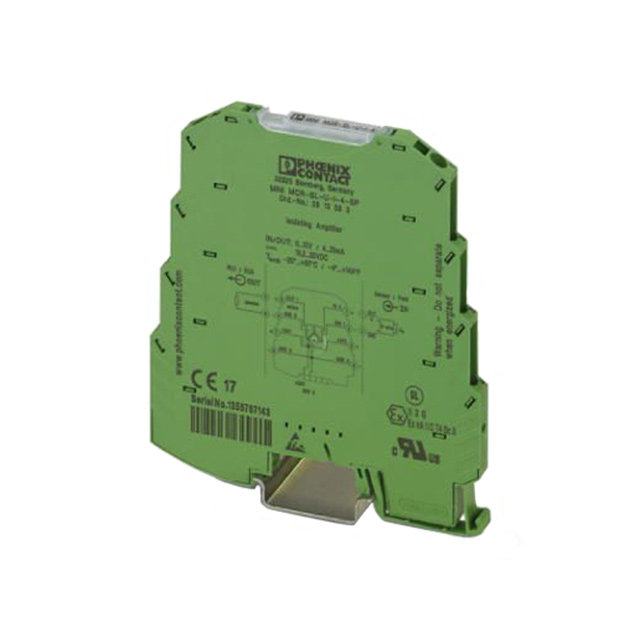

3 线微型 MCR 转换器/绝缘体模块可提供三路电压绝缘和模拟信号转换。 低吸收功率、低热量和更长的工作寿命。 超紧凑型外壳：仅 6.2 mm。 螺钉或咬合锁定导线端接 -SP。 电源电压： | 24 V 直流 ---|--- 吸收电流： | 工作温度： | -20°C → +65°C 最大频率： | 100 Hz 尺寸 mm | 102.5 x 93.1 x 6.2 参照 Phoenix | 外壳 | 信号 电压 | 信号 电流 ---|---|---|--- 2813512 | 微型 MCR-SL-U-I-0 | 0 到 10 V | 0 至 20 mA 2813570 | 微型 MCR-SL-U-I-0-SP | 0 到 10 V | 0-20 mA 2813525 | 微型 MCR-SL-U-I-4 | 0 到 10 V | 4 至 20 mA 2813583 | 微型 MCR-SL-U-I-4-SP | 0 到 10 V | 4 至 20 mA 2813541 | 微型 MCR-SL-I-U-0 | 0 至 20 mA | 0-10 V 2813554 | 微型 MCR-SL-I-U-0-SP | 0 至 20 mA | 0 到 10 V 2813538 | 微型 MCR-SL-I-U-4 | 4 至 20 mA | 0 到 10 V 2813567 | 微型 MCR-SL-I-U-4-SP | 4 至 20 mA | 0 到 10 V ### Phoenix Contact DIN 卡轨安装外壳材料：聚酰胺 - 所有类型
** Contact MCR Series – MINI Analog Highly Compact Signal Conditioner:**
Maximum signal quality with minimal space requirements – MINI Analog signal conditioners isolate, convert, filter, and amplify your analog signals – with a design width of just 6.2 mm.
The configurable MINI Analog modules are easy to set with DIP switches – without the need for any software. Alternatively, Phoenix Contact can make the settings based on your individual ordering information. For enhanced functionality and monitoring you can also configure the modules with the robust S-Port interface conveniently using a free-of-charge software interface. Here you can choose between three solutions:
1\. Standalone ANALOG -CONF software
2\. FDT/DTM software package
3\. Standalone DTMs, allowing you to use your
existing FDT frame application
**Features:**
* Power supply possible via the foot element TBUS
* Low power consumption
* Entry-level alternative to configurable signal conditioners
