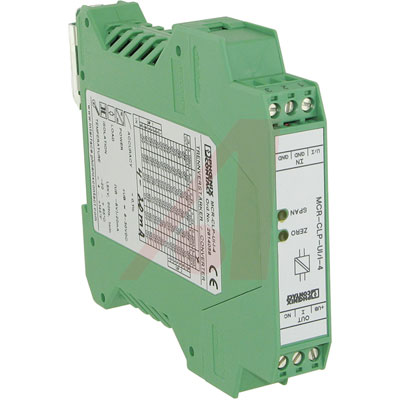

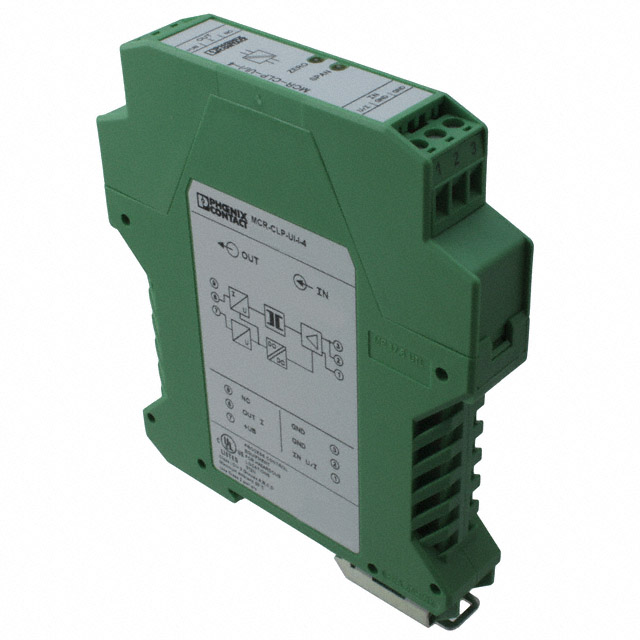

I/O 模块 MCR-CLP-UI-I-4
** Contact MCR Series – MINI Analog Loop-powered Isolators:**
Maximum signal quality with minimal space requirements – MINI Analog signal conditioners isolate, convert, filter, and amplify your analog signals – with a design width of just 6.2 mm.
The configurable MINI Analog modules are easy to set with DIP switches – without the need for any software. Alternatively, Phoenix Contact can make the settings based on your individual ordering information. For enhanced functionality and monitoring you can also configure the modules with the robust S-Port interface conveniently using a free-of-charge software interface. Here you can choose between three solutions:
1\. Standalone ANALOG -CONF software
2\. FDT/DTM software package
3\. Standalone DTMs, allowing you to use your
existing FDT frame application
**Features:**
* Power supply possible via the foot element TBUS
* Low power consumption
* Entry-level alternative to configurable signal conditioners
* Highly-compact isolating amplifier for electrical isolation, conversion, amplification, and filtering of standard analog signals
* 3-way isolation
* Fixed signal combinations
