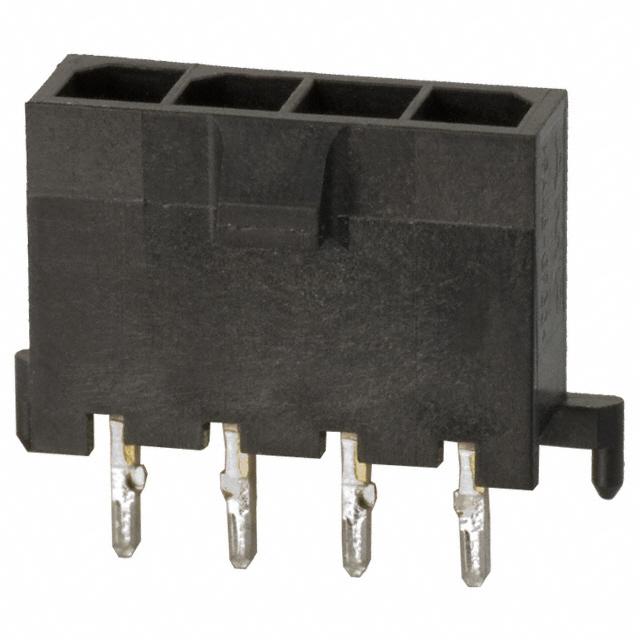

矩形连接器, Micro MATE-N-LOK Series, 4 触点, 针座, 3 mm, 通孔安装, 1排
MICRO MNL HDR ASSY S/ROW LF
Product Highlights
Header Assembly
Number of Positions = 4
Number of Rows = Single
Vertical Mount Angle
Mount Style = Through-Hole
得捷:
CONN HEADER VERT 4POS 3MM
立创商城:
2-1445050-4
e络盟:
矩形连接器, Micro MATE-N-LOK Series, 4 触点, 针座, 3 mm, 通孔安装, 1排
艾睿:
The 2-1445050-4 power connector from TE Connectivity is perfect for powering your circuit because it comes with the least amount of losses. This HDR connector&s;s 4 contacts that are made out of brass and plated with matte tin over nickel. It has a header type gender. This connector has a single port. Its pitch is 3 mm. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. This device has a maximum current rating of 5 A/contact. 2-1445050-4 is housed in nylon. The item will be shipped in tray orientation. This product is 5.67 mm deep. Its 4 terminals use the solder termination method. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C.
安富利:
Conn Power HDR 4 POS 3mm Solder ST Thru-Hole 4 Terminal 1 Port
Chip1Stop:
Conn Power HDR 4 POS 3mm Solder ST Thru-Hole 4 Terminal 1 Port
Verical:
Conn Power HDR 4 POS 3mm Solder ST Thru-Hole 4 Terminal 1 Port Box/Tray
Powell:
3mm Centerline, 250V, 5 A max.
Online Components:
MICRO MNL HDR ASSY S/ROW LF
Electro Sonic:
MICRO MNL HDR ASSY S/ROW LF
触点数 4
触点电镀 Tin
绝缘电阻 1000 MΩ
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 4
安装角度 180 °
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 250 VAC
额定电压 250 V
接触电阻Max 20 mΩ
安装方式 Through Hole
封装 -
引脚间距 3.00 mm
长度 13.0 mm
宽度 3.86 mm
高度 9.24 mm
封装 -
引脚间距 3.00 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -40℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Tray
制造应用 发光二极管照明, 工业, 消费电子产品, 仪器仪表, 安全, Power, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2-1445050-4 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1445050-4 泰科 | 功能相似 | 2-1445050-4和1445050-4的区别 |
