2231A-30-3

KEITHLEY  2231A-30-3  稳压电源, 3通道, 30V, 3A, 可调

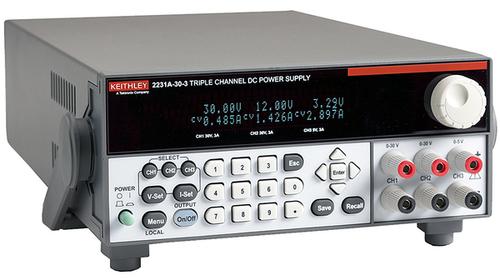

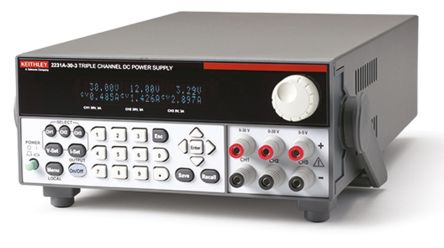

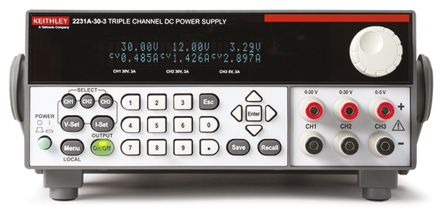

The Model Triple Channel DC Power Supply can output a total of 195W of power, providing the power levels needed to energize a wide range of circuits and devices for benchtop work. Two channels can supply up to 30V at 3A each; the third channel can provide up to 5V at 3A. The Model 2231A-30-1 does not compromise on performance or convenience features, offering the versatility and ease of use you need, so it can be the only DC power supply on your bench.

.

Get three isolated, independent, and adjustable outputs in one instrument

.

Output a total of 195W of power with two 30V@3A outputs and one 5V@3A output

.

Set voltage outputs with 0.06% basic accuracy and current outputs with 0.2% basic accuracy

.

Output DC power with less than 5mVp-p noise

.

Display voltage and current measurements continuously from all three outputs

.

Double output levels by connecting the two 30V channels in series or parallel

.

Store frequently used configurations in any of 30 setup memory locations

.

Turn off any output after a predetermined test time with each channel"s output timer

.

Control the supply from a PC with an optional USB adapter

.

Control the supply from a PC with an optional USB adapter

.

3 year manufacturer warranty
