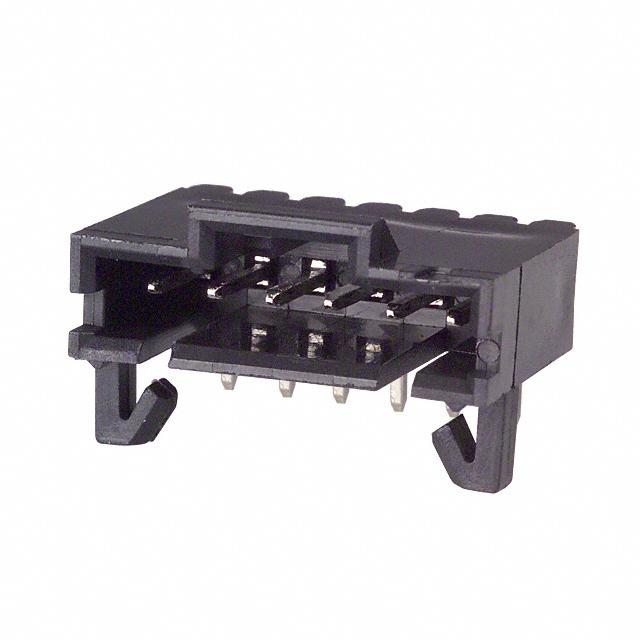

2-103672-9

Conn Shrouded Header HDR 6POS 2.54mm Solder RA Thru-Hole Tube

06 MTE HDR SRRA LATCH W/HLDWN

Product Highlights

Header

Number of Positions = 6

Number of Rows = Single

Post Size = 0.64 [.025] mm [in]

Terminate To Printed Circuit Board

得捷:
CONN HEADER R/A 6POS 2.54MM

贸泽:
Headers & Wire Housings HDR 6P R/A .100 TIN

艾睿:
Mount this shrouded 2-103672-9 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 6 contacts that are made out of brass and plated with bright tin over nickel. It has a header type gender. It has a right angle body orientation. This is a 1-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 17.78 mm long, 6.99 mm tall and 13.59 mm deep. 2-103672-9 is housed in black thermoplastic. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube

Chip1Stop:
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube

Verical:
Conn Shrouded Header 4 Sides HDR 6 POS 2.54mm Solder RA Thru-Hole Box/Tube

Newark:
# AMP - TE CONNECTIVITY  2-103672-9  06 MTE HDR SRRA LATCH W/HLDWN New

MASTER:
HDR ASSY, RT ANG, SINGLE ROW 2.54[.100] CL, 0.64[.025] SQ POST, WITH PLZN & HOLD

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
06 MTE HDR SRRA LATCH W/HLDWN

Electro Sonic:
06 MTE HDR SRRA LATCH W/HLDWN
