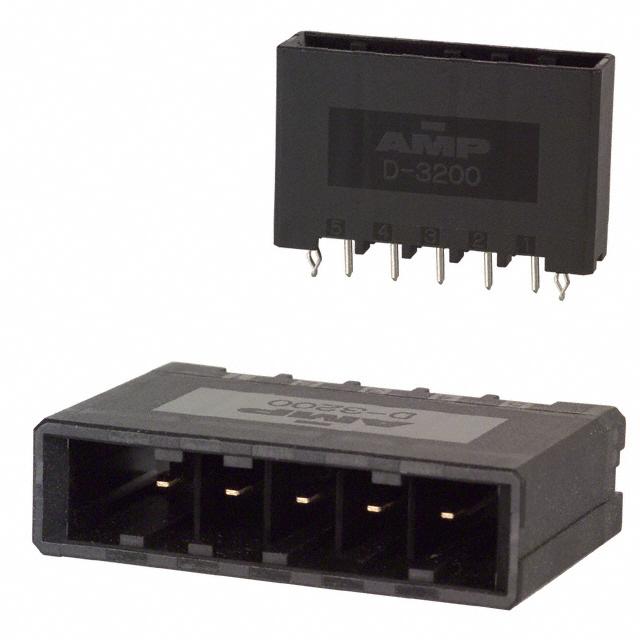

2-316132-3

间距5.08mm 5P1*5 Y键 黑色 垂直式 镀金0.76μm 推荐选用：1-316132-2（X键 黑色 需整套更换）

针座连接器 通孔 5 位置 0.200"（5.08mm）

得捷:
CONN HEADER VERT 5POS 5.08MM

贸泽:
集管和线壳 5 POS HDR VERT 30 AU KEY Y

艾睿:
This robust 2-316132-3 power connector from TE Connectivity easily retains normal operation in harsh and stressful environments. This M connector&s;s 5 contacts that are made out of copper alloy and plated with gold over nickel. It has a male type gender. Its pitch is 5.08 mm. It has a maximum voltage rating of 600 VDC|600VAC. This connector has a single port. It has a straight body orientation. 2-316132-3 is housed in polyester. This device has a maximum current rating of 10.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 5 terminals use the solder termination method. This product is 34.32 mm long, 21.6 mm tall and 9.35 mm deep. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C.

MASTER:
DYNAMIC D-3200 HDR ASSY 5P V

Powell:
Dynamic Series Connectors

Online Components:
DYNAMIC D-3200 HDR ASSY 5P V
