207121-9

TE Connectivity Metrimate 5mm 方形栅格引脚和插座印刷电路板管座Metrimate 方形栅格引脚和插座印刷电路板安装管座，具有红色热塑性 94V-0 等级外壳和 5mm 中心线。 这些方形栅格引脚和插座印刷电路板安装管座预装了铜合金、镀锡或镀金双工引脚触点或磷青铜、镀锡或镀金双工插座触点，并具有锁定插片和安装耳。### TE Connectivity Metrimate 系列5mm 节距连接器 适合面板或自由安装 比 Mate-N-Lok 系列引脚更高

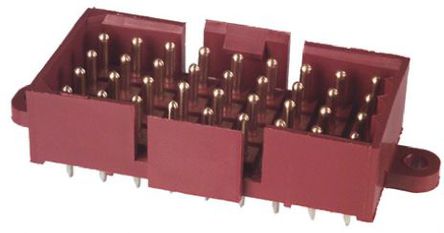

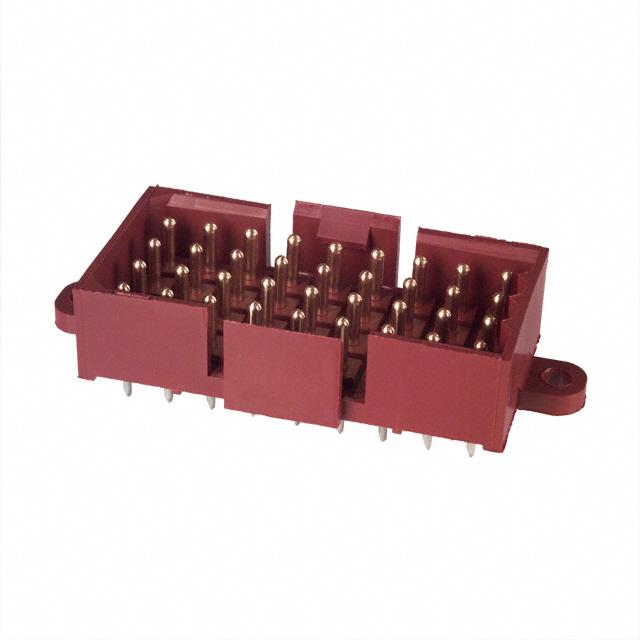

Metrimate 5mm 方形栅格引脚和插座印刷电路板管座

Metrimate 方形栅格引脚和插座印刷电路板安装管座，具有红色热塑性 94V-0 等级外壳和 5mm 中心线。 这些方形栅格引脚和插座印刷电路板安装管座预装了铜合金、镀锡或镀金双工引脚触点或磷青铜、镀锡或镀金双工插座触点，并具有锁定插片和安装耳。

5mm 节距

适合面板或自由安装

比 Mate-N-Lok 系列引脚更高

得捷:
CONN HEADER VERT 36POS 5MM

欧时:
### TE Connectivity Metrimate 5mm 方形栅格引脚和插座印刷电路板管座Metrimate 方形栅格引脚和插座印刷电路板安装管座，具有红色热塑性 94V-0 等级外壳和 5mm 中心线。 这些方形栅格引脚和插座印刷电路板安装管座预装了铜合金、镀锡或镀金双工引脚触点或磷青铜、镀锡或镀金双工插座触点，并具有锁定插片和安装耳。### TE Connectivity Metrimate 系列5mm 节距连接器 适合面板或自由安装 比 Mate-N-Lok 系列引脚更高

艾睿:
Are you looking for a solution to connecting a circuit to a power supply? Then use this 207121-9 power connector from TE Connectivity for a secure connection! This PIN connector&s;s 36 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 600 VDC|600VAC. This connector has a single port. Its pitch is 5 mm. 207121-9 is housed in nylon. This device has a maximum current rating of 14 A/contact. The item will be shipped in tray orientation. This power connector has a minimum operating temperature of -55 °C and a maximum of 130 °C. This product is 62.31 mm long, 11.79 mm tall and 29.36 mm deep. Its 36 terminals use the solder termination method.

Allied Electronics:
Through Hole Industrial Power Plug, Rated At 14A, 600 V ac/dc

安富利:
Conn Power PIN 36 POS 5mm Solder ST Thru-Hole 36 Terminal 1 Port

Chip1Stop:
Conn Power PIN 36 POS 5mm Solder ST Thru-Hole 36 Terminal 1 Port Tray

Verical:
Conn Rectangular M 36 POS 5mm Solder ST Thru-Hole Box/Tray

MASTER:
PIN HEADER ASSEMBLY, 36 POSITION, METRIMATE

Powell:
Metrimate Connectors

Online Components:
METRIMATE PIN HDR ASY,36P LF

Electro Sonic:
METRIMATE PIN HDR ASY,36P LF
