2-179960-2

间距10.16mm 6P1*6 Y键 黑色 垂直式 镀金0.38μm 推荐选用：1-179960-2（X键 需整套更换）

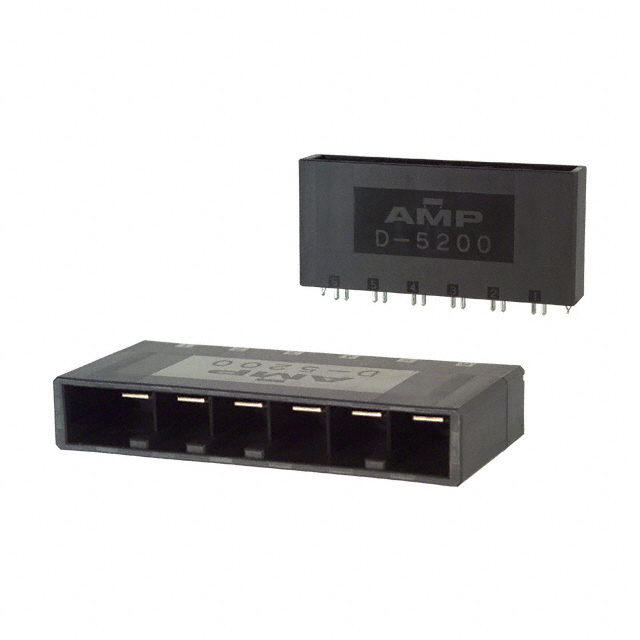

DYNAMIC D-5200 HDR ASSY 6P V Y

Product Highlights

Connector

Housing Gender = Header - Tab

With Contacts

Contact Gender = Tab

Terminate To Printed Circuit Board

得捷:
CONN HEADER VERT 6POS 10.16MM

艾睿:
Are you looking for a solution to connecting a circuit to a power supply? Then use this 2-179960-2 power connector from TE Connectivity for a secure connection! This M connector&s;s 6 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 10.16 mm. It has a maximum voltage rating of 630 VAC. It has a male type gender. This connector has a single port. It has a straight body orientation. 2-179960-2 is housed in polyester. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 70 mm long, 32 mm tall and 12.4 mm deep. Its 6 terminals use the solder termination method. This power connector has an operating temperature range of -55 °C to 105 °C.

安富利:
Conn Power M 6 POS 10.16mm Solder ST Thru-Hole 6 Terminal 1 Port Tube

Verical:
Connector Power HDR 6 POS

MASTER:
6 POS SINGLE ROW VERTICAL HDR ASS"Y < DYNAMIC D-5200 <

Powell:
Dynamic Series Connectors

Online Components:
DYNAMIC D-5200 HDR ASSY 6P V Y

Electro Sonic:
DYNAMIC D-5200 HDR ASSY 6P V Y
