2102351-1概述

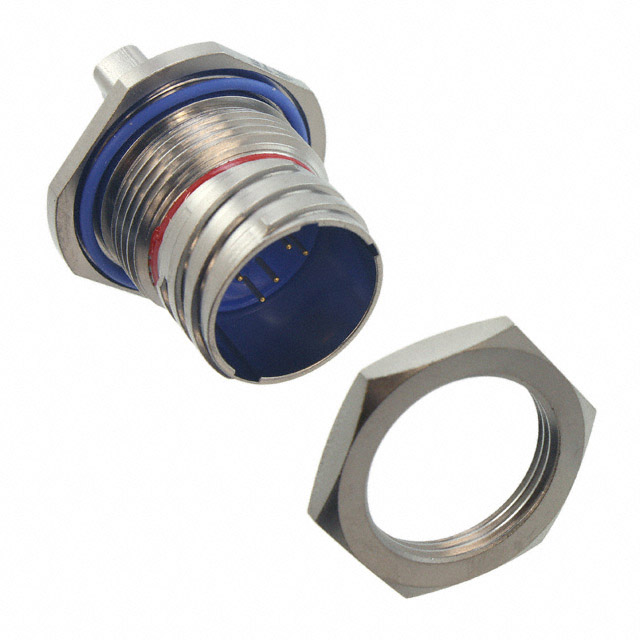

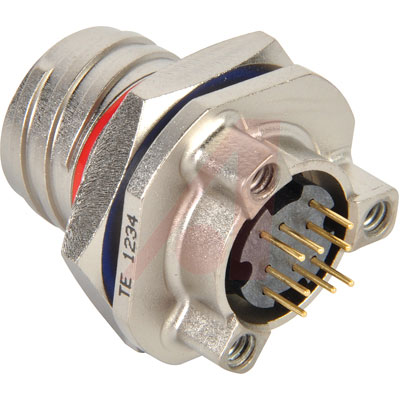

TE CONNECTIVITY  2102351-1  圆形连接器, 母, 8路, PCB

TE"s CeeLok FAS-T connector is one of the most rugged, small, 10 GB Ethernet, field terminable I/O connector in the Aerospace, Defense and Marine marketplace. It has been designed to perform in some of the most extreme environments in the industry, while providing substantial size and weight savings via its small shell size 8 form factor.


得捷:
CONN RCPT MALE 8POS SOLDER


贸泽:
模块式连接器/以太网连接器 FAS-T 10GB PC TAIL RCPT KIT, ElNi


e络盟:
圆形连接器, 母, 8路, PCB


艾睿:
Conn Circular F 8 POS Solder ST Thru-Hole 8 Terminal 1 Port


Allied Electronics:
Raychem; Conn; Cir; Kit; Recept; Jam Nut; 8 Pos; Sz 8; PC Tail; CeeLok FAS-T; ElNi; Key N


安富利:
Conn Circular F 8 POS Solder ST Thru-Hole 8 Terminal 1 Port


Chip1Stop:
Conn Circular F 8 POS Solder ST Thru-Hole 8 Terminal 1 Port


Verical:
Conn Circular PIN 8 POS Solder ST Thru-Hole 8 Terminal 1 Port


Newark:
# TE CONNECTIVITY  2102351-1  Circular Connector, CeeLok FAS-T Series, PCB Mount Receptacle, 8 Contacts, Crimp Pin, Threaded


MASTER:
PCB MOUNT KIT


Online Components:
CeeLok FAS-T, Receptacle Kit, PCB, Ni


Electro Sonic:
CeeLok FAS-T, Receptacle Kit, PCB, Ni


2102351-1中文资料参数规格
技术参数

触点数 8

极性 Female

额定电流 5 A

绝缘电阻 500 mΩ

针脚数 8

工作温度Max 175 ℃

工作温度Min -65 ℃

额定电压 500 VAC

封装参数

安装方式 Through Hole

外形尺寸

高度 24.13 mm

物理参数

触点材质 Beryllium Copper

工作温度 -65℃ ~ 170℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 航空,船舶,军事

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买2102351-1
型号: 2102351-1
描述:TE CONNECTIVITY  2102351-1  圆形连接器, 母, 8路, PCB
