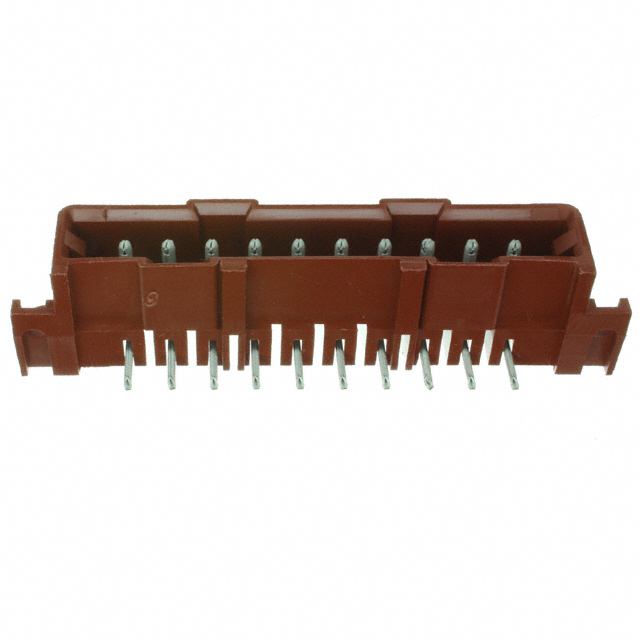

207398-6

Conn Power PIN 10POS 5mm Solder RA Thru-Hole 10 Terminal 1Port

METRIMATE PIN HEADER ASSY,10P

Product Highlights

Connector

Connector Type = Header

In-Line Connector Configuration

10 Positions

Pin

得捷:
CONN HEADER R/A 10POS 5MM

艾睿:
This robust 207398-6 power connector from TE Connectivity easily retains normal operation in harsh and stressful environments. This PIN connector&s;s 10 contacts that are made out of brass and plated with tin over copper|tin over nickel. This connector has a single port. It has a maximum voltage rating of 600 VDC|600VAC. Its pitch is 5 mm. It has a right angle body orientation. 207398-6 is housed in nylon. This device has a maximum current rating of 14 A/contact. Its 10 terminals use the solder termination method. This power connector has an operating temperature range of -55 °C to 130 °C. This product is 71.86 mm long, 12.7 mm tall and 17.5 mm deep.

安富利:
Conn Power PIN 10 POS 5mm Solder RA Thru-Hole 10 Terminal 1 Port

Chip1Stop:
Conn Power PIN 10 POS 5mm Solder RA Thru-Hole 10 Terminal 1 Port

Verical:
Conn Power PIN 10 POS 5mm Solder RA Thru-Hole 10 Terminal 1 Port

MASTER:
METRIMATE PIN HEADER ASSY,10P

Powell:
Metrimate Connectors

Online Components:
METRIMATE PIN HEADER ASSY,10P

Electro Sonic:
METRIMATE PIN HEADER ASSY,10P
