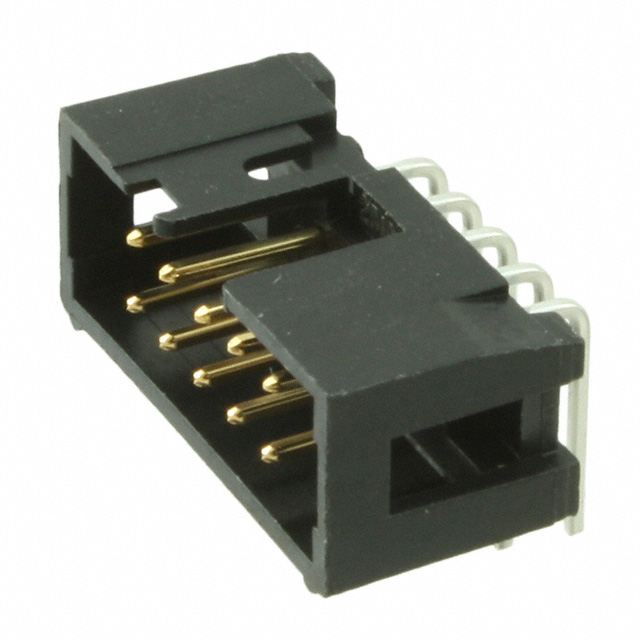

2510-5002UB

线至板连接器, 直角, 2.54 mm, 10 触点, 针座, 通孔安装, 2 排

The is a 10-way 2-row 0.100 x 0.100-inch right angle Four Wall Wire-to-board Header with gold-plated copper alloy contacts. This 2500 series low profile four wall header comes with glass filled polyester PCT insulator and tin leaded solder tails. Center slot polarization prevents misinsertions and reduces insertion time. Through-hole version is suitable for reflow soldering using "paste-in-hole" techniques. Exposed solder tails on right angle version provide ease of cleaning and reduced repair costs.

.

Black color

.

Low profile, space saving design

.

UL94V-0 Flammability rating

.

>1 x 10⁹R at 500VDC Insulation resistance
