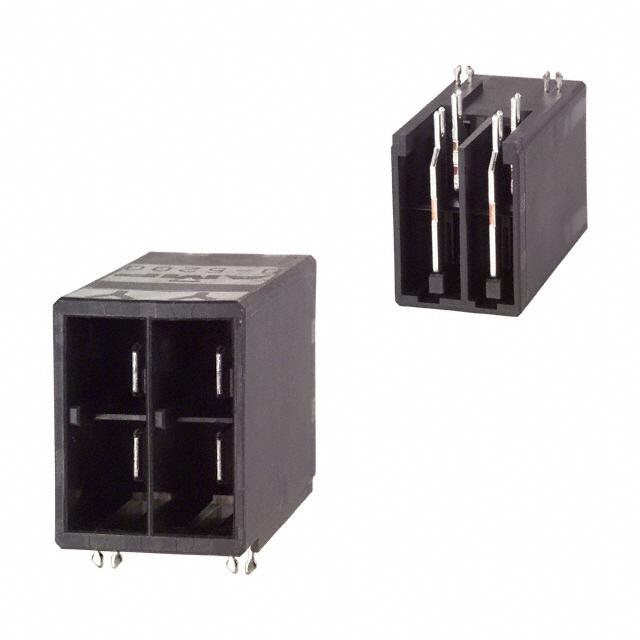

2-1318983-6

间距10.16mm 行距10.16mm 4P2*2 YY键 黑色 水平式 镀银2.54μm 推荐选用：1-1318983-6（XX键 需整套更换

DYNAMIC D-5200 HDR H ASSY 4P

Product Highlights

Connector

Housing Gender = Header - Tab

Preloaded

Contact Gender = Tab

Terminate To Printed Circuit Board

得捷:
CONN HEADER R/A 4POS 10.16MM

立创商城:
2-1318983-6

贸泽:
集管和线壳 HDR ASSY H 4P

艾睿:
The best way to get minimal losses of power in your circuit is by operating it with the 2-1318983-6 power connector from TE Connectivity. This HDR connector&s;s 4 contacts that are made out of copper alloy and plated with silver over nickel. It has a right angle body orientation. It has a maximum voltage rating of 630 VAC. It has a header type gender. This connector has a single port. Its pitch is 2.54 mm. 2-1318983-6 is housed in polyester. This device has a maximum current rating of 5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 45 mm long, 30.86 mm tall and 22.56 mm deep. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its 4 terminals use the solder termination method.

安富利:
Conn Power HDR 4 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Tube

Verical:
Conn Power HDR 4 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Box/Tube

MASTER:
DYNAMIC D-5200 HDR H ASSY 4P

Powell:
Dynamic Series Connectors

Online Components:
DYNAMIC D-5200 HDR H ASSY 4P

Electro Sonic:
DYNAMIC D-5200 HDR H ASSY 4P
