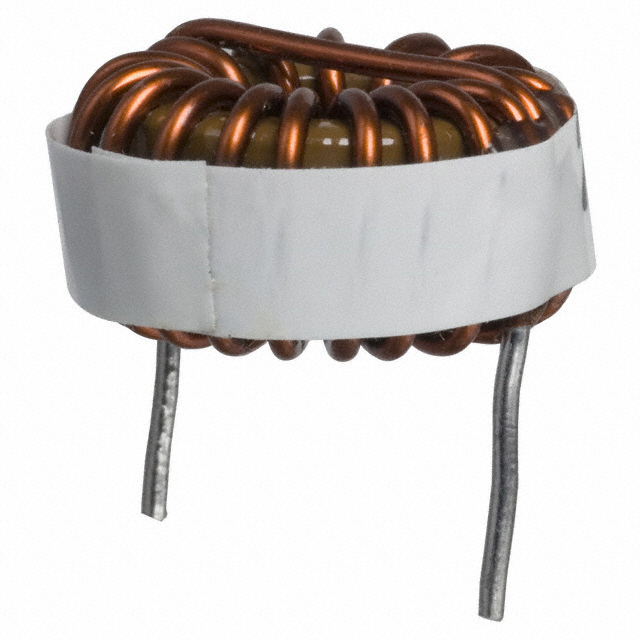

2318-H-RC

BOURNS  2318-H-RC  螺线电感, 水平安装, 330uH, 15%, 5.2A

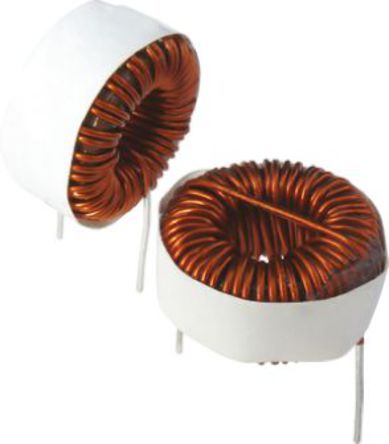

Bourns 2300 系列径向扼流圈

直流/直流转换器，EMI 滤波器应用

低辐射

低磁芯损耗

高电流容量

水平或重直安装

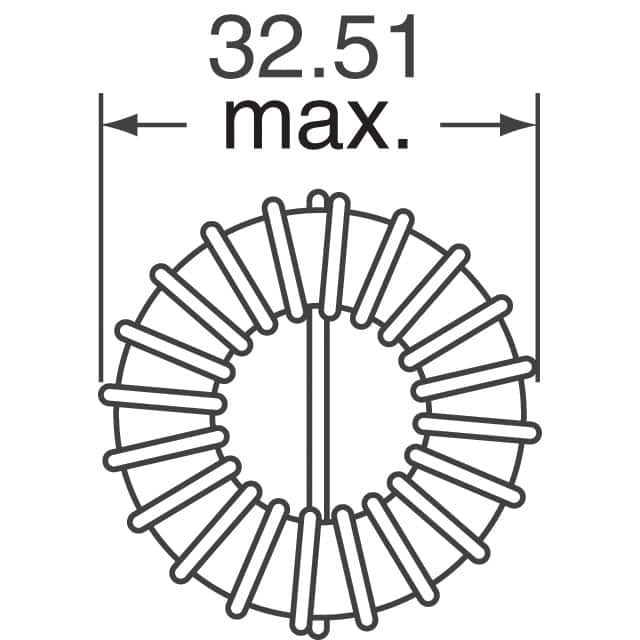

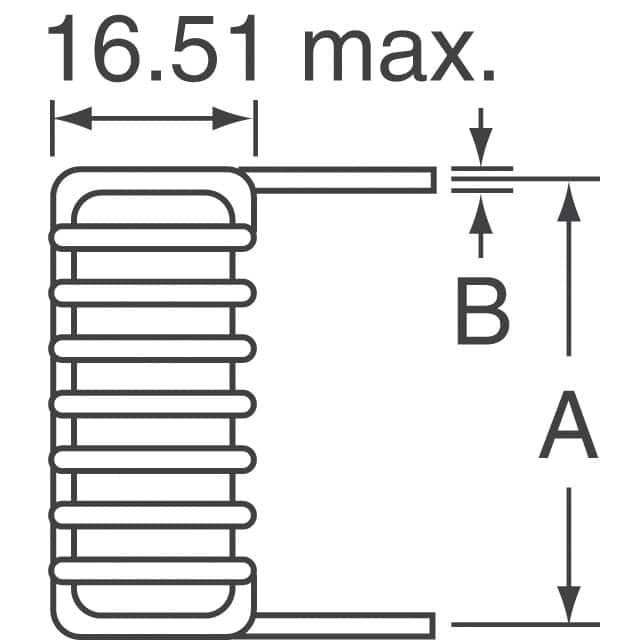

产品尺寸：外径 32.5mm，厚 16.5mm

工作温度 -55 至 +105°C

### Bourns 引线型器（扼流圈）

得捷:
FIXED IND 330UH 5.2A 67 MOHM TH

欧时:
### Bourns 2300 系列径向扼流圈直流/直流转换器，EMI 滤波器应用 低辐射 低磁芯损耗 高电流容量 水平或重直安装 产品尺寸：外径 32.5mm，厚 16.5mm 工作温度 -55 至 +105°C ### Bourns 引线型电感器（扼流圈）

立创商城:
330uH ±15% 67mΩ

贸泽:
Fixed Inductors 330uH 15% Horizontal

e络盟:
环形电感, 高电流, 2300系列, 330 µH, 5.2 A, 0.067 ohm, ± 15%

艾睿:

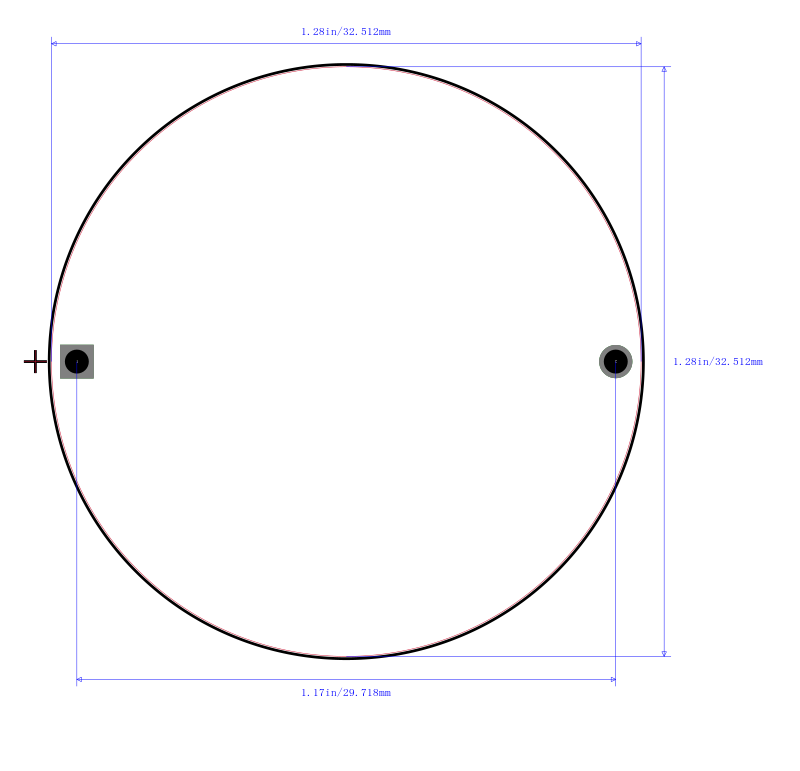

Your electrical design will benefit from this high current 2318-H-RC leaded inductor from Bourns. This part has a pitch of 29.72 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. This device is made with toroid technology. This product is 16.51 mm tall with a diameter of 32.51 mm. Its test frequency is 1K Hz. This leaded inductor has a maximum DC current of 5.2 A with a maximum resistance of 67m Ohm. It has a tolerance of 15%. It has an inductance of 330u/174.1uRated H.

Allied Electronics:
Inductor; Toroid, High Current; 330 uH; 15%; 0.067 Ohm DCR Max; Horizontal

安富利:
Ind High Current Toroid 330uH 15% 1KHz 5.2A RDL

Chip1Stop:
Inductor High Current Toroid 330uH/174.1uH 15% 1KHz 5.2A 67mOhm DCR RDL

Verical:
Inductor High Current Toroid 330uH/174.1uH 15% 1KHz 5.2A 0.067Ohm DCR RDL

Newark:
# BOURNS JW MILLER  2318-H-RC  Inductor, Toroidal, High Current, 2300 Series, 330 µH, 5.2 A, 0.067 ohm, ± 15%

MASTER:
Inductor High Current Toroid 330uH/174.1uH 15% 1KHz 5.2A 67mOhm DCR RDL

Electro Sonic:
Inductor High Current Toroid 330uH/174.1uH 15% 1KHz 5.2A 67mOhm DCR RDL
