2102353-2概述

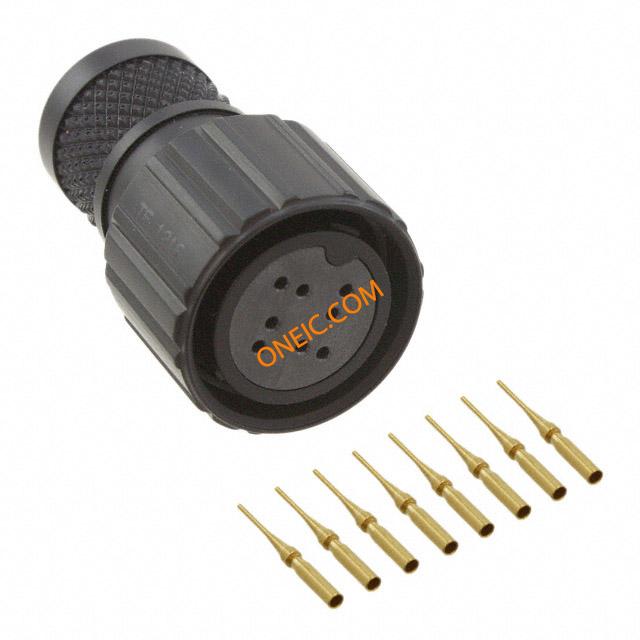

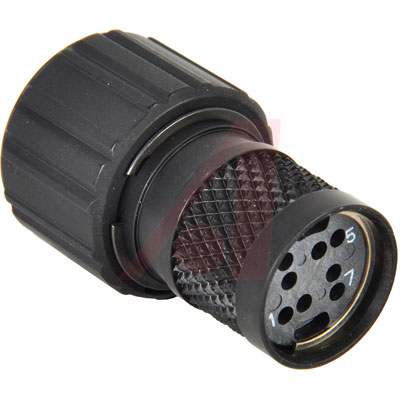

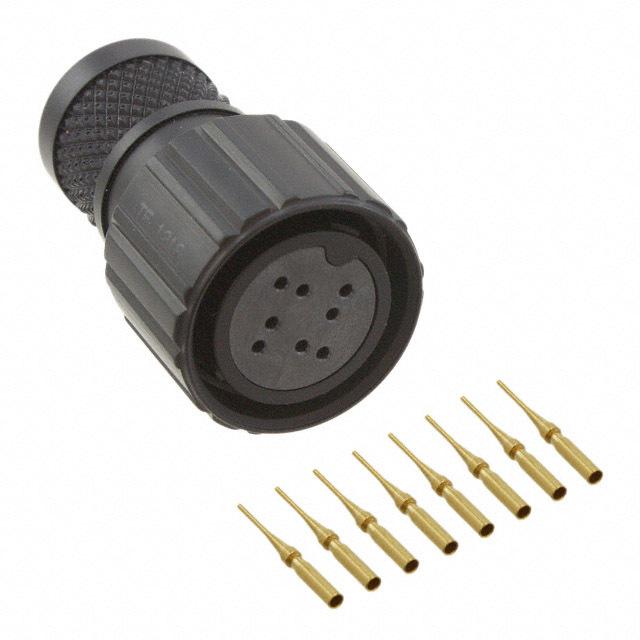

TE CONNECTIVITY  2102353-2  圆形连接器, 公, 8路, 电缆安装

TE"s CeeLok FAS-T connector is one of the most rugged, small, 10 GB Ethernet, field terminable I/O connector in the Aerospace, Defense and Marine marketplace. It has been designed to perform in some of the most extreme environments in the industry, while providing substantial size and weight savings via its small shell size 8 form factor.


得捷:
CONN PLUG FMALE 8POS GOLD SOLDER


e络盟:
TE CONNECTIVITY  2102353-2  圆形连接器, 公, 8路, 电缆安装


艾睿:
Use this 2102353-2 connector from TE Connectivity to connect peripherals to your device. This female connector has 8 female contacts. It has a straight body orientation. Its shell size arrangement is plated in zinc nickel. It has a receptacle type gender. This product is 30.86 mm long, 19.05 mm tall and 30.86 mm deep with a diameter of 19.05 mm.


Allied Electronics:
Raychem; Conn; Cir; Kit; Plug; 8 Pos; Sz 8; CeeLok FAS-T; 26-24 AWG; Black ZnNi; Key N


安富利:
Conn Circular F 8 POS ST Panel Mount 8 Terminal 1 Port


Verical:
Conn Circular F 8 POS ST Panel Mount 8 Terminal 1 Port


Newark:
# TE CONNECTIVITY  2102353-2  Circular Connector, CeeLok FAS-T Series, Cable Mount Plug, 8 Contacts, Crimp Socket, Threaded


MASTER:
Circular Connector - CeeLok FAS-T Series - Cable Mount Plug - 8 Contacts - Crimp Socket - Threaded.


Online Components:
PLUG ASSEMBLY KIT


Electro Sonic:
Circular Connector - CeeLok FAS-T Series - Cable Mount Plug - 8 Contacts - Crimp Socket - Threaded.


2102353-2中文资料参数规格
技术参数

触点数 8

极性 Male

额定电流 5 A

绝缘电阻 500 mΩ

针脚数 8

额定电压 500 VAC

外形尺寸

长度 30.86 mm

高度 19.05 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Beryllium Copper

工作温度 -65℃ ~ 170℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 航空,船舶,军事

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694020

数据手册
