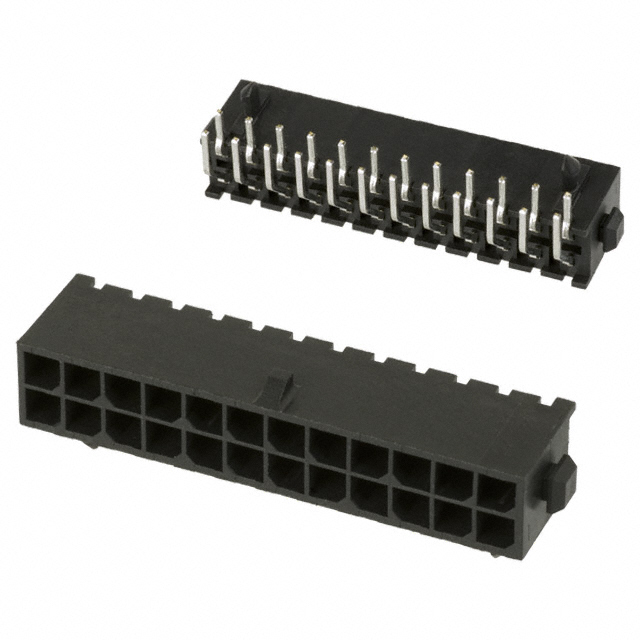

2-794618-4

Conn Power HDR 24POS 3mm Solder RA Thru-Hole 24 Terminal 1Port Tray

Connector Header Through Hole, Right Angle 24 position 0.118" 3.00mm

得捷:
CONN HEADER R/A 24POS 3MM

艾睿:
This 2-794618-4 power connector from TE Connectivity is ideal for powering up your circuit. This HDR connector&s;s 24 contacts that are made out of brass and plated with tin-lead over nickel. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. It has a header type gender. This connector has a single port. Its pitch is 3 mm. 2-794618-4 is housed in nylon. This device has a maximum current rating of 5 A/contact. The component will be shipped in tray format. This power connector has an operating temperature range of -40 °C to 105 °C. Its 24 terminals use the solder termination method. This product is 40 mm long, 8.67 mm tall and 11.92 mm deep.

Powell:
3mm Centerline, 250V, 5 A max.
