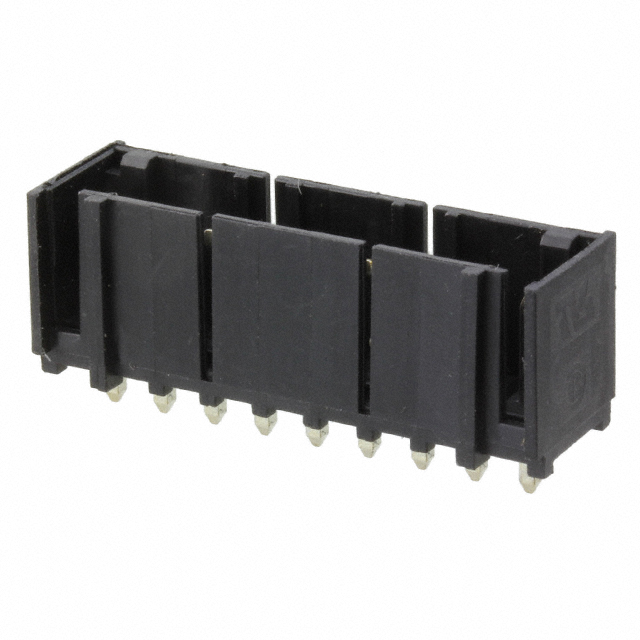

Conn Shrouded Header HDR 9POS 3.96mm Solder ST Thru-Hole
09P MTA156 SHRD HDR ASSY SQ SN
Product Highlights
MTA-156 Connectors
Number of Positions = 9
Mating Type = Header
Wire-to-Board Application
3.96 mm Contact Centerline Spacing
得捷:
CONN HEADER VERT 9POS 3.96MM
贸泽:
Headers & Wire Housings 09P MTA156 SHRD HDR ASSY SQ SN
艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded 2-647123-9 header connector from TE Connectivity. This HDR connector&s;s 9 contacts that are made out of copper alloy and plated with tin over nickel. It has a straight body orientation. This is a 1-row connector. Its pitch is 3.96 mm. It has a header type gender. It has a maximum voltage rating of 600 VAC. This device has a maximum current rating of 7 A/contact. This product is 38.05 mm long, 13.34 mm tall and 11.56 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. 2-647123-9 is housed in black polyester.
Chip1Stop:
Conn Shrouded Header HDR 9 POS 3.96mm Solder ST Thru-Hole
Verical:
Conn Shrouded Header HDR 9Power POS 3.96mm Solder ST Top Entry Thru-Hole Package
Newark:
# AMP - TE CONNECTIVITY 2-647123-9 09P MTA156 SHRD HDR ASSY SQ SN
MASTER:
Conn Shrouded Header HDR 9Power POS 3.96mm Solder ST Top Entry Thru-Hole Package
Online Components:
09P MTA156 SHRD HDR ASSY SQ SN
Electro Sonic:
09P MTA156 SHRD HDR ASSY SQ SN
触点数 9
触点电镀 Tin
额定电压AC 600 V
额定电流 7 A
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 9
带凸肩 Yes
额定电流Max 7A/触头
额定电压Max 600 VAC
额定电压 600 V
接触电阻Max 3 mΩ
安装方式 Through Hole
高度 13.34 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
