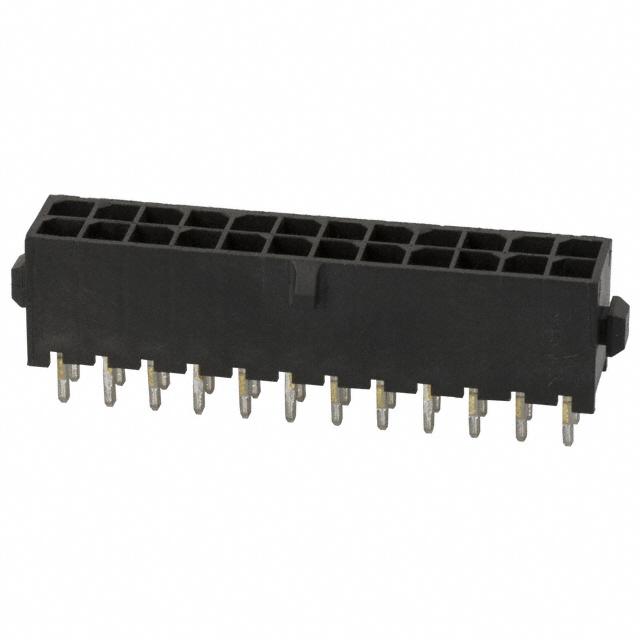

2-794632-4

Conn Power HDR 24POS 3mm Solder ST Thru-Hole 24 Terminal 1Port

Connector Header Through Hole 24 position 0.118" 3.00mm

得捷:
CONN HEADER VERT 24POS 3MM

艾睿:
The 2-794632-4 power connector from TE Connectivity is perfect for powering your circuit because it comes with the least amount of losses. This HDR connector&s;s 24 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. Its pitch is 3 mm. It has a maximum voltage rating of 250 VAC. It has a header type gender. This connector has a single port. This device has a maximum current rating of 5 A/contact. 2-794632-4 is housed in nylon. This product is 40 mm long, 9.24 mm tall and 8.67 mm deep. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. Its 24 terminals use the solder termination method.

Powell:
3mm Centerline, 250V, 5 A max.

Electro Sonic:
Conn Power HDR 24 POS 3mm Solder ST Thru-Hole 24 Terminal 1 Port
