2-102618-3

Conn Shrouded Header HDR 50POS 2.54mm Solder ST Thru-Hole

针座 通孔 50 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 50POS 2.54MM

艾睿:

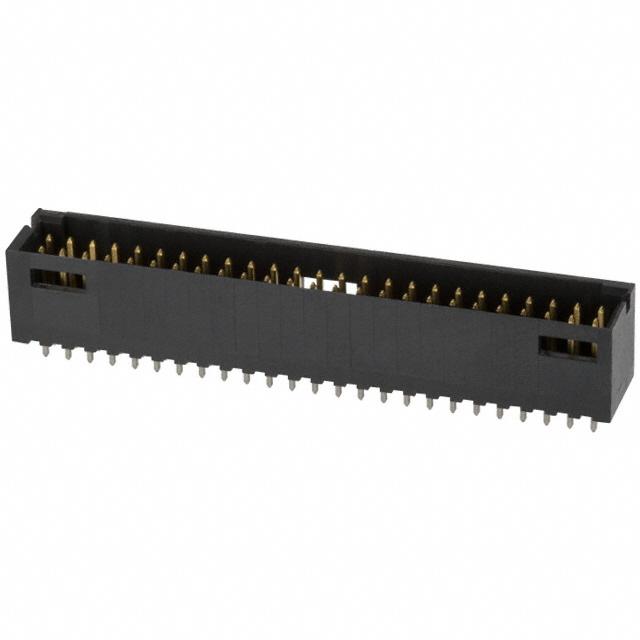

Reduce safety concerns with this shrouded 2-102618-3 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a header type gender. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. The component will be shipped in tray format. This product is 66.34 mm long, 11.18 mm tall and 10.16 mm deep. 2-102618-3 is housed in black thermoplastic. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Tray

Powell:
.100 inch AMPMODU Headers

Electro Sonic:
50 MODII HDR DRST SHRD .100CL
