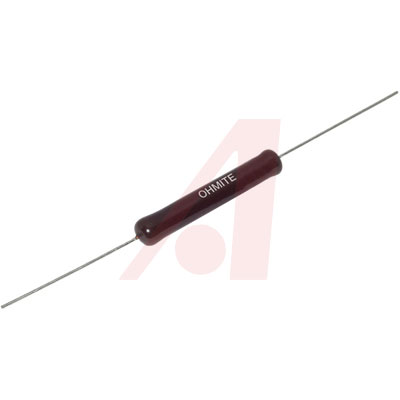

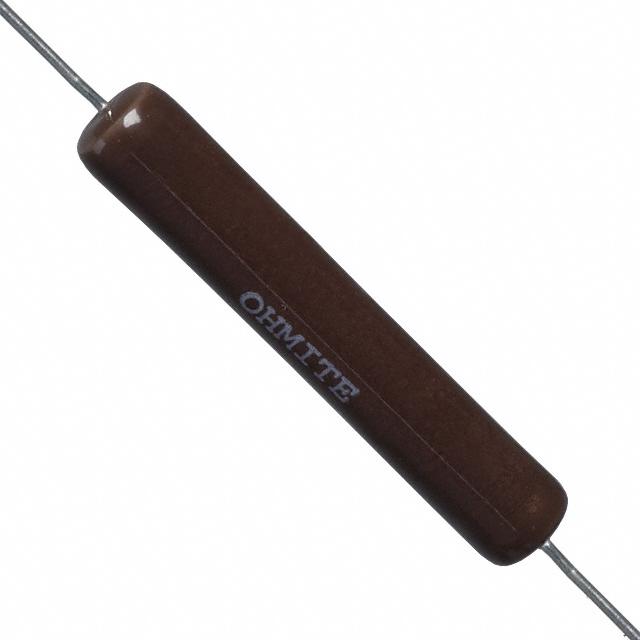

OHMITE 20JR10E 绕线电阻, 0.1欧姆 5% 10W
**Features
**
* Rugged Vitreous Enamel Coating Withstands High Humidity and Temperature Cycling
* Durable Construction, Recommended for Industrial Applications Where Reliability Is Paramount
* All-Welded Construction
* Flame-Resistant Vitreous Enamel Coating
* 5% Tolerance
得捷:
RES 0.1 OHM 5% 10W AXIAL
立创商城:
绕线电阻 100mΩ ±5% 10W
贸泽:
Wirewound Resistors - Through Hole 10watt .1ohm 5%
e络盟:
绕线电阻, 0.1 Ω, 10W, 5%
艾睿:
Res Wirewound 0.1 Ohm 5% 10W Vitreous Enamel AXL
Allied Electronics:
Resistor; Wirewound; Res 0.1 Ohms; Pwr-Rtg10 W; Tol 5%; Axial; Vitreous Enamel
Chip1Stop:
Res Wirewound 0.1 Ohm 5% 10W Conformal AXL
Verical:
Res Wirewound 0.1 Ohm 5% 10W Vitreous Enamel AXL
Newark:
# OHMITE 20JR10E Through Hole Resistor, Ceramic, 0.1 ohm, 720 V, Axial Leaded, 10 W, ± 5%, 20 Series
MASTER:
Res Wirewound 0.1 Ohm 5% 10W Vitreous Enamel AXL
Online Components:
Res Wirewound 0.1 Ohm 5% 10W Vitreous Enamel AXL
Electro Sonic:
Res Wirewound 0.1 Ohm 5% 10W Vitreous Enamel AXL
额定电压DC 720 V
容差 ±5 %
额定功率 10 W
产品系列 20
电阻 0.1 Ω
阻值偏差 ±5 %
额定电压 720 V
安装方式 Through Hole
引脚数 2
封装 Axial Leaded
长度 46.8 mm
直径 10.0 mm
脚长度 38.1 mm
封装 Axial Leaded
工作温度 25℃ ~ 350℃
温度系数 ±90 ppm/℃
产品生命周期 Active
包装方式 Bulk
最小包装 1000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210080
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
20JR10E Ohmite | 当前型号 | 当前型号 |
20JR10 Ohmite | 完全替代 | 20JR10E和20JR10的区别 |
RS010R1000FE12 威世 | 功能相似 | 20JR10E和RS010R1000FE12的区别 |
