Multi-application Modular System - PSR-SPP SeriesThis can be quickly and reliably assembled to form a tailor-made safety solution. To connect using TBUS correctly you will need one PSR-TBUS per module. For the last additional module use one PSR-TBUS-TP instead, this will close the feedback loop. The interface module is used for the connection of up to four safety sensors with NC/NO contacts to the safety relay PSR-SDC4, with screw connection. Quick system extension up to 10 modules, offering a safety system with up to 42 contacts Automatic identification of desired operating mode, no need to set switches or define parameters The system is based on a master relay PSR-SDC that monitors e-stops, guard doors interlock or non-contact and optical devices e.g. light curtains Safe cross-wiring with T-BUS renders the usual cross-wiring of supply voltage, enable signal and confirmation path redundant. Making commissioning and future expansion simple 24Vdc supply voltage Semiconductor output Depending on the wiring Safety category 2 or 4 can be maintained One or Two channel switches are used for control Note: The device has a rear interface for the DIN Rail connector T-BUS. Via this T-BUS interface extension devices PSR-URM4-B undelayed contacts and PSR-URD drop-out delay contacts can be controlled and monitored over one channel. These in combination form a T-BUS unit, the feedback path must be connected to the final right hand extension device see datasheet for more details or by using connection plug PSR-TBUS-TP ### 可配置安全继电器
**Multi-application Modular System - PSR-SPP Series**
This can be quickly and reliably assembled to form a tailor-made safety solution. To connect using TBUS correctly you will need one PSR-TBUS per module. For the last additional module use one PSR-TBUS-TP instead, this will close the feedback loop. The interface module is used for the connection of up to four safety sensors with NC/NO contacts to the safety relay PSR-SDC4, with screw connection.
欧时:

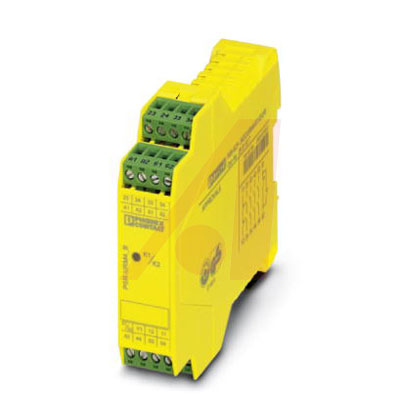

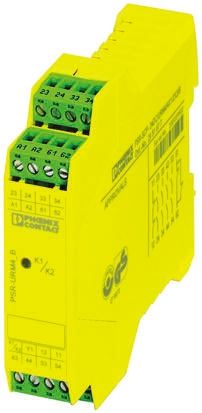

PSR-SPP-24DC/URM4/4X1/2X2/B
艾睿:
1-Channel Extension Module With T-Bus Interface, 4 N/O Contacts, 1 N/ C Contact, 1 Confirmation Current Path, Undelayed, Cat. 4 / En 954-1, Pluggable Spring-Cage Terminal Blocks, Width 22.5 Mm
Allied Electronics:
Relay; 1-channel extension module with T-bus interface 4 N/O contacts 1 N/C
Electro Sonic:
Single-channel contact extension with TBUS interface - 4 N/O contacts - 1 N/C contact - 1 confirmation current path - ...
