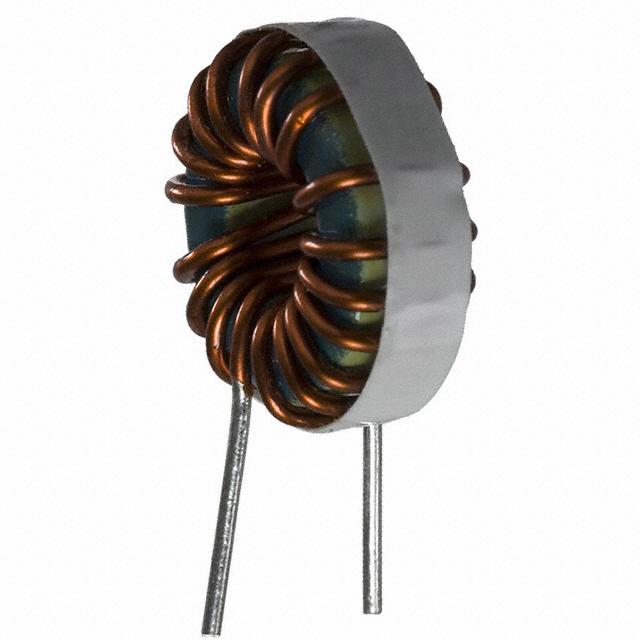

BOURNS 2209-V-RC 螺线电感, 竖直安装, 47uH, 15%, 6.7A
This high current leaded inductor from Bourns resists changes in electric current passing through it. This part has a pitch of 11.43 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has a tolerance of 15%. This device is made with toroid technology. It has an inductance of 47u/29.3uRated H. This leaded inductor has a maximum DC current of 6.7 A with a maximum resistance of 24m Ohm. Its test frequency is 1K Hz. This product is 13.97 mm deep.
额定电流 6.7 A
容差 ±15 %
电感 47 µH
屏蔽 No
电感公差 ±15 %
测试频率 1 kHz
电阻DC) ≤24 mΩ
工作温度Max 105 ℃
工作温度Min -55 ℃
电阻DC Max 0.024 Ω
安装方式 Through Hole
引脚数 2
封装 Radial
宽度 13.97 mm
高度 14.0 mm
直径 24.1 mm
封装 Radial
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2209-V-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
2209-V 伯恩斯 | 完全替代 | 2209-V-RC和2209-V的区别 |
