2105-H-RC

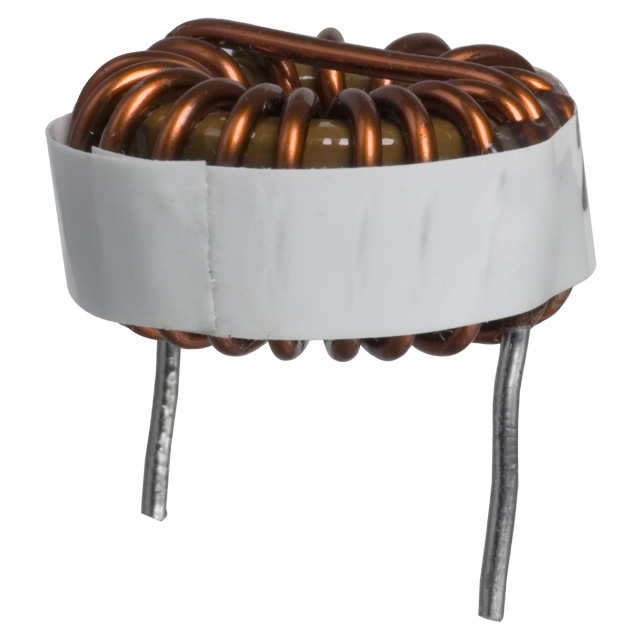

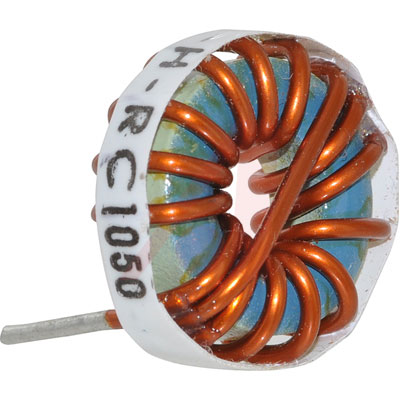

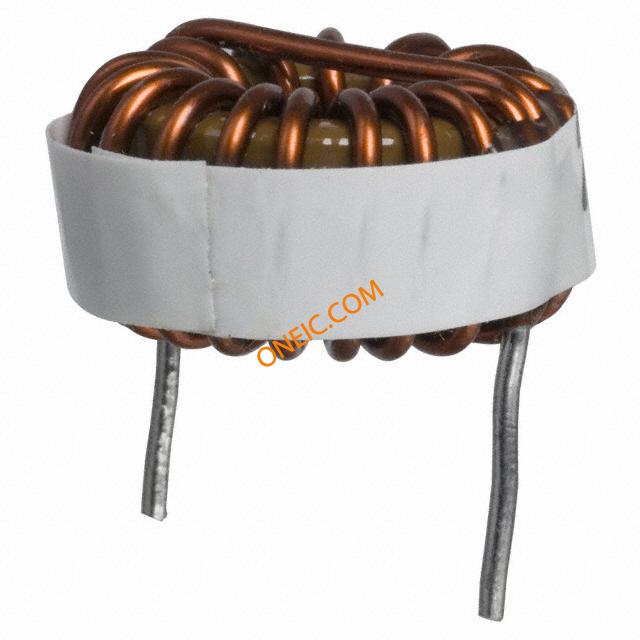

BOURNS  2105-H-RC  螺线电感, 水平安装, 22uH, 15%, 7A

* DC/DC Converter, EMI Filter Applications

* Low Radiation

* Low Core Loss

* High Current Capacity

* Horizontal or Vertical Mount

* Low Cost

* Operating Temperature –55°C to +105°C

得捷:
FIXED IND 22UH 7A 15 MOHM TH

e络盟:
环形电感, 高电流, 2100系列, 22 µH, 7 A, 0.015 ohm, ± 15%

艾睿:

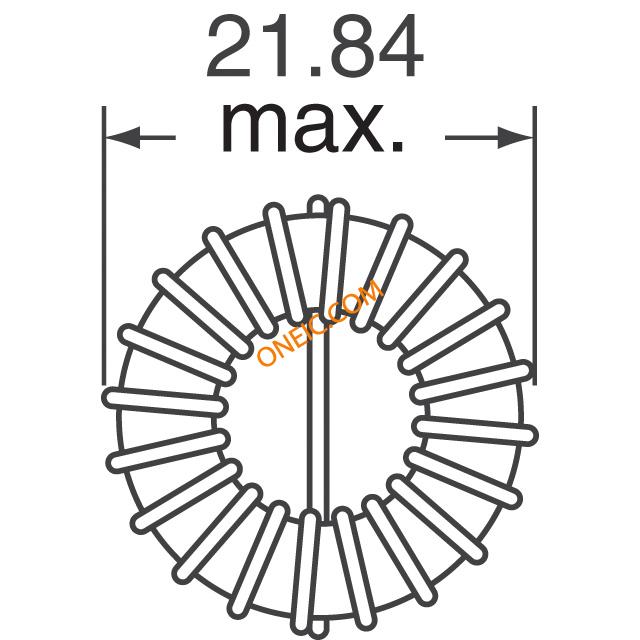

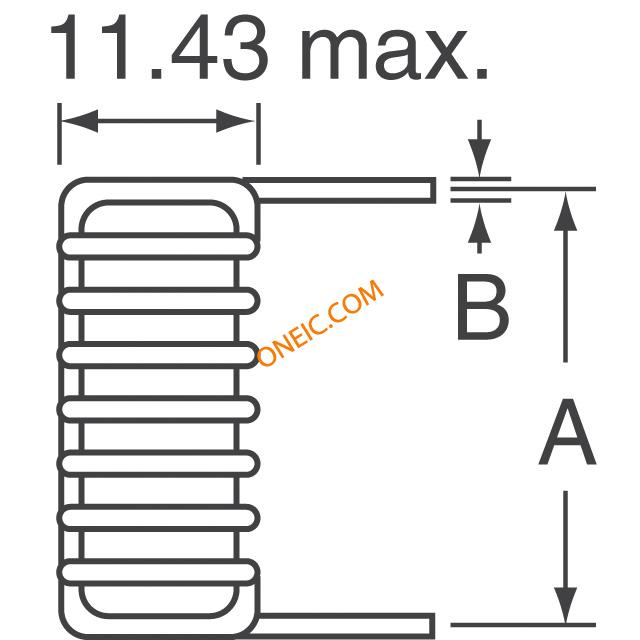

This high current 2105-H-RC leaded inductor from Bourns is available for both power applications and RF applications. This part has a pitch of 19.3 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This product is 11.43 mm tall with a diameter of 21.84 mm. It has a tolerance of 15%. This device utilizes toroid technology. Its test frequency is 1K Hz. It has an inductance of 22u/14.2uRated H. This leaded inductor has a maximum DC current of 7 A with a maximum resistance of 15m Ohm.

Allied Electronics:
Inductor, Toroidal; 22 L uH; 7Adc; 15%; 0.015 Ohms DCR; Horizontal

安富利:
Ind High Current Toroid 22uH 15% 1KHz 7A RDL

Chip1Stop:
Ind High Current Toroid 22uH 15% 1KHz 7A RDL

Verical:
Inductor High Current Toroid 22uH/14.2uH 15% 1KHz 7A 0.015Ohm DCR RDL

Newark:
# BOURNS JW MILLER  2105-H-RC  Inductor, Toroidal, High Current, 2100 Series, 22 µH, 7 A, 0.015 ohm, ± 15%

MASTER:
Inductor High Current Toroid 22uH/14.2uH 15% 1KHz 7A 15mOhm DCR RDL

Electro Sonic:
Inductor High Current Toroid 22uH/14.2uH 15% 1KHz 7A 15mOhm DCR RDL
