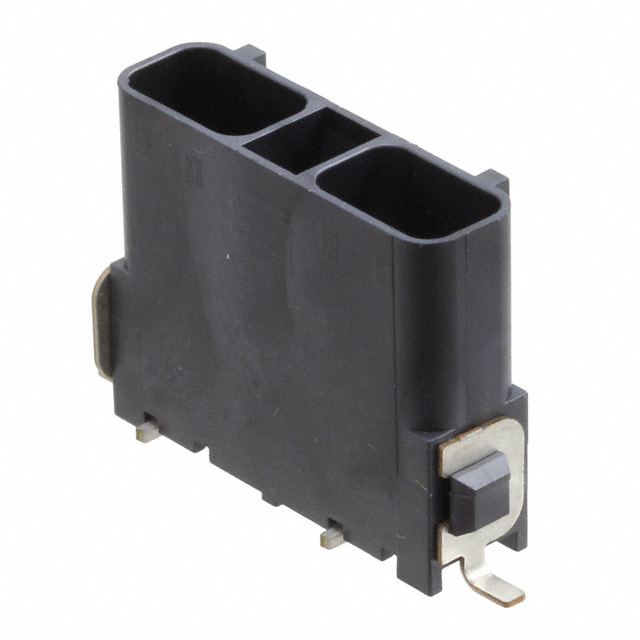

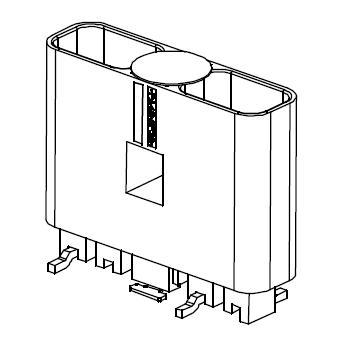

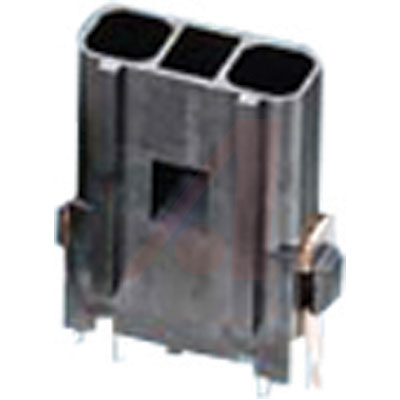

TE CONNECTIVITY 2106053-6 密封照明连接器, 线至板
Tyco Electronics SlimSeal SSL Connectors.
* **Features**
* SMT and Thru Hole
* Wire-to-Wire and Wire-to-Board
* Vertical and Right Angle
* Positive Integral Latching
* Polarized Connectors
* Pre-Assembled Aeals and Wire Guides**Application**
* Billboards
* Live Events Lighting
* Wall Wash Lighting
* Spot Lighting
* Street Lighting
* Tunnel Lighting
* Flood Lights
* LED Strip Lighting
得捷:
CONN SSL HDR 4POS 3.5MM SOLDER
贸泽:
照明连接器 Assembly Vertical SMT Header
e络盟:
密封照明连接器, 线至板
艾睿:
Protect your printed circuit boards from accidental damages with TE Connectivity&s;s wire to board 2106053-6 header connector. This HDR connector&s;s 4 contacts that are made out of brass and plated with tin over nickel. It has a maximum voltage rating of 250 VDC|250VAC. It has a header type gender. It has a straight body orientation. Its pitch is 3.5 mm. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This connector has an operating temperature of -40 to 105 °C. 2106053-6 is housed in black liquid crystal polymer. This product is 27.65 mm long, 17.59 mm tall and 8.02 mm deep. It uses the solder termination method.
Allied Electronics:
Sealed Lighting Connector; 4 Position Vertical SMT Header
安富利:
Conn Wire to Board HDR 4 POS 3.5mm Solder ST SMD Pocket Tape
Chip1Stop:
Conn Wire to Board HDR 4 POS 3.5mm Solder ST SMD T/R
Verical:
Conn Wire to Board HDR 4 POS 3.5mm Solder ST SMD Pocket Tape
Newark:
# TE CONNECTIVITY 2106053-6 Wire-To-Board Connector, 3.5 mm, 4 Contacts, Header, SlimSeal Series, Surface Mount, 1 Rows
MASTER:
ASSEMBLY, VERTICAL SMT HEADER, SLIMSEAL SSL CONNECTOR
Powell:
Lighting Connectors Assembly Vertical SMT Header
Online Components:
Assembly, Vertical SMT Header, 4-Positio
AMEYA360:
CONN SSL HDR 4POS 3.5MM SOLDER
Electro Sonic:
Assembly, Vertical SMT Header, 4-Positio
触点数 4
极性 Male
触点电镀 Tin, Tin over Nickel
排数 1
易燃性等级 UL 94 V-0
针脚数 4
拔插次数 30
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 400 V
安装方式 Surface Mount
高度 17.59 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -40℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
