2907101概述

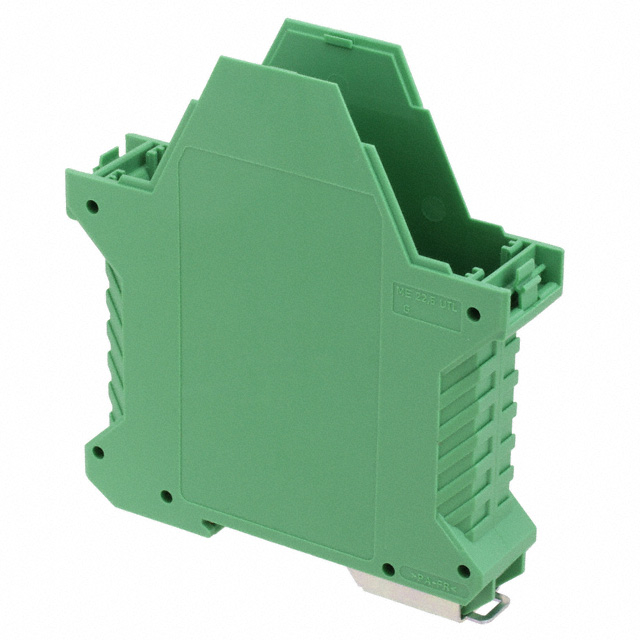

PHOENIX CONTACT  2907101  机箱, 外壳底座, 模块式, 114.5 mm, 22.5 mm, 99 mm, 玻璃纤维增强尼龙聚酰胺, 绿色

塑料,聚酰胺 基座 3.898" 长 x 0.886" 宽 x 4.508" 高(99.00mm x 22.50mm x 114.50mm) 绿色


得捷:
HOUSING LOWER DIN RAIL


e络盟:
塑料机壳, 外壳底座, 模块式, 尼龙, 玻璃填充, 114.5 mm, 22.5 mm, 99 mm, 未评级


艾睿:
This component housing 2907101 connector accessory from Phoenix Contact is ideal for a variety of cable connection situations. It has a straight body orientation. This part has an operating temperature of -40 to 105 °C. This product is 99 mm long, 114.5 mm tall and 22.5 mm deep.


Verical:
Component housing without vents, Lower part, Cross connection, without bus connector, color, green, width, 22.5


Newark:
# PHOENIX CONTACT  2907101  Enclosure, Housing Base, Modular, 114.5 mm, 22.5 mm, 99 mm, Nylon Polyamide, Glass Filled, Green


MASTER:
DIN rail housing - Lower housing part with metal foot catch - tall design - without vents - width: 22.6 mm - height: 99 mm - depth: 84.8 mm - cross connection: without bus connector - color: green 6021


Online Components:
Connector Accessories Component Housing Straight Polyamide Green


Electro Sonic:
DIN rail housing - Lower housing part with metal foot catch - tall design - without vents - width: 22.6 ...


2907101中文资料参数规格
封装参数

封装 Metal

外形尺寸

宽度 22.5 mm

封装 Metal

物理参数

颜色 Green

材质 Plastic

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

HTS代码 8538908080

数据手册

在线购买2907101
型号: 2907101
描述:PHOENIX CONTACT  2907101  机箱, 外壳底座, 模块式, 114.5 mm, 22.5 mm, 99 mm, 玻璃纤维增强尼龙聚酰胺, 绿色
