POMONA 2249-K-36 同轴连接电缆, BNC

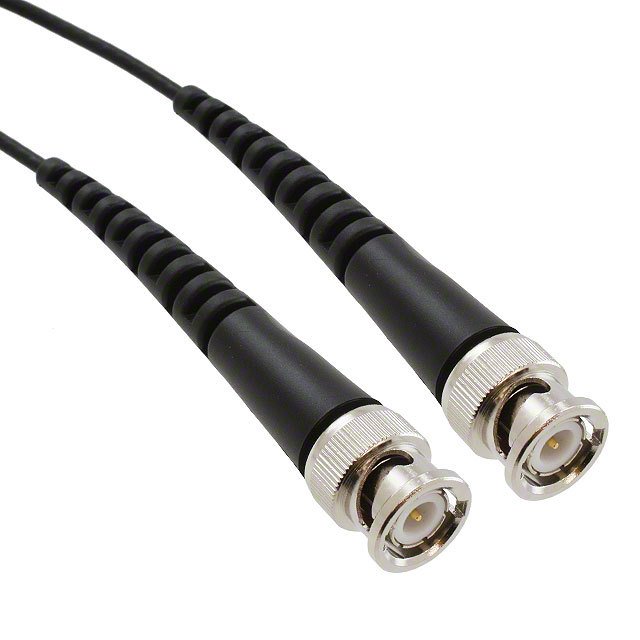

Cable Assembly with BNC Male on Each End, 50 Ohms Impedance, PTFE Dielectric Material
** Cable Designation and Type**
** 2249-C:** RG58C/U, 50 ohm cable makes it ideal for most test and measurement applications, RF transmission systems and Thinnet LAN applications.
** 2249-E:** RG59B/U, 75 ohm cable assembly for use with broadcast, video, and other signal applications.
** 2249-K:** RG174/U, smaller diameter 50 ohm cable for greater flexibility in tight applications. It is best suited for use in low power situations where small size and flexibility is important.
** 2249-Y:** RG223/U, double shielded 50 ohm cable assembly for superior interference rejection.
** Features
**
* The Molded Strain Relief Is Directly Bonded to the Cable Jacket for Superior Strength and Durability
* Teflon Insulation and Nickel Tarnish Resistant Outer Shells Used in the BNC Connector Provide Long Life and Reliability
* Gold Plated Center Contacts Assure the Most Noise Free Connection Possible
* The Connectors and Cable Are Impedance Matched
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2249-K-36 Pomona Electronics | 当前型号 | 当前型号 |
2249-K-24 Pomona Electronics | 完全替代 | 2249-K-36和2249-K-24的区别 |
2249-K-12 Pomona Electronics | 完全替代 | 2249-K-36和2249-K-12的区别 |
2249-K-48 Pomona Electronics | 完全替代 | 2249-K-36和2249-K-48的区别 |
