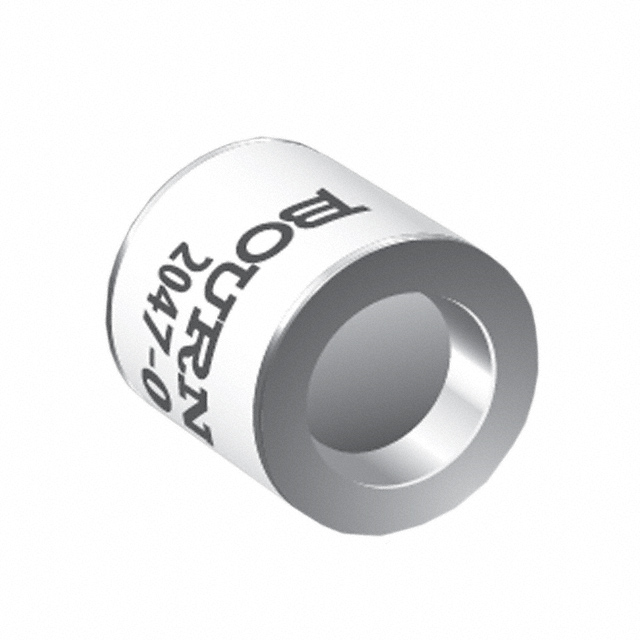

BOURNS 2047-09-ALF 气体放电管 GDT, 2047系列, 90 V, SMD, 40 kA, 600 V
The 2047 series 2-electrode Gas Discharge Tube offers low capacitance and insertion loss. It is suitable for telecommunication and industrial equipment.
.
12.7mm diameter, 12.7mm length
.
Long service life
.
High surge current rating
.
Tube with contact terminals available
.
UL recognized
.
Test methods per ITU-T K.12, IEEE C62.31 and IEC 61643-311 GDT standards
2047-09-ALF中文资料参数规格
技术参数
容差±20 %
工作温度Max90 ℃
工作温度Min-40 ℃
封装参数
安装方式Surface Mount
封装SMD
外形尺寸
高度12.7 mm
封装SMD
其他
产品生命周期Active
包装方式Bulk
制造应用计算机和计算机周边, 消费电子产品, 安全, 通信与网络, 工业
符合标准
RoHS标准RoHS Compliant
含铅标准Lead Free
REACH SVHC标准No SVHC
REACH SVHC版本2016/06/20
数据手册
在线购买2047-09-ALF
型号:2047-09-ALF
制造商:
Bourns J.W. Miller
伯恩斯
描述:BOURNS 2047-09-ALF 气体放电管 GDT, 2047系列, 90 V, SMD, 40 kA, 600 V
