2061-602/998-404

WAGO  2061-602/998-404  端子块, 线至板, 2路, 20-16AWG

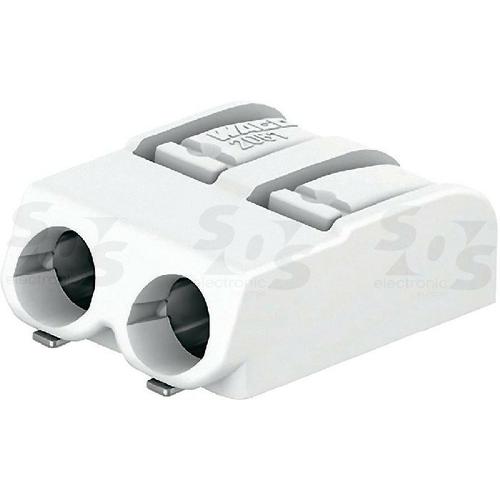

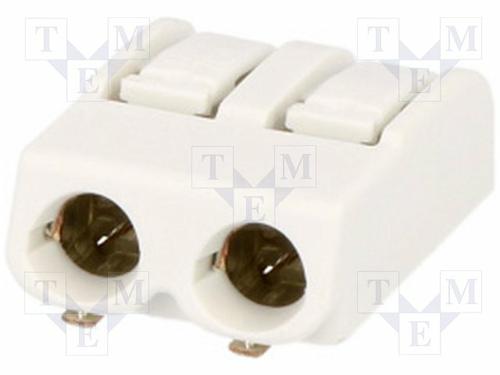

The from Wago is a surface mount, 2 pole terminal block with push button for wire insertion. This terminal block comes with 6mm pin spacing and suitable for wire size ranging from 20AWG to 16AWG.

.

White colour terminal block

.

Polyphtalamide glass fibre insulating material

.

Copper alloy contact, right angle wire orientation

.

Tin plating

.

Weight of 1.456g

.

Pollution degree of 2

.

UL94 V-0 flammability rating

.

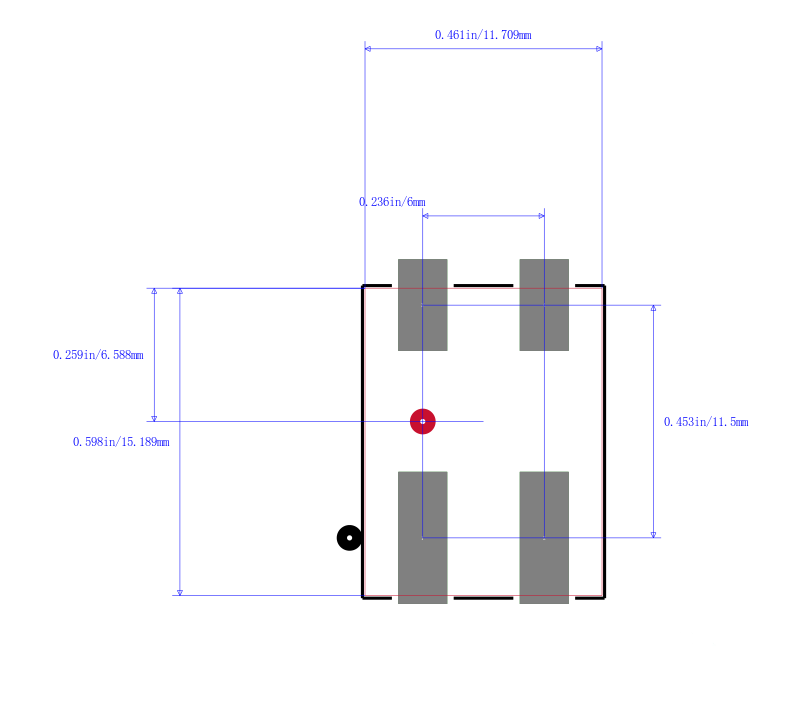

Dimension of terminal block is 15.8mm x 11.7mm x 5.6mm L x W x H

.

IEC/EN 60664-1 and UL 1977 approved

.

Temperature range from -60°C to 105°C
