282834-5

TE CONNECTIVITY / BUCHANAN  282834-5  线至板接线端子, 5 路, 150 V, 10 A, 30 AWG, 16 AWG, 1.4 mm²

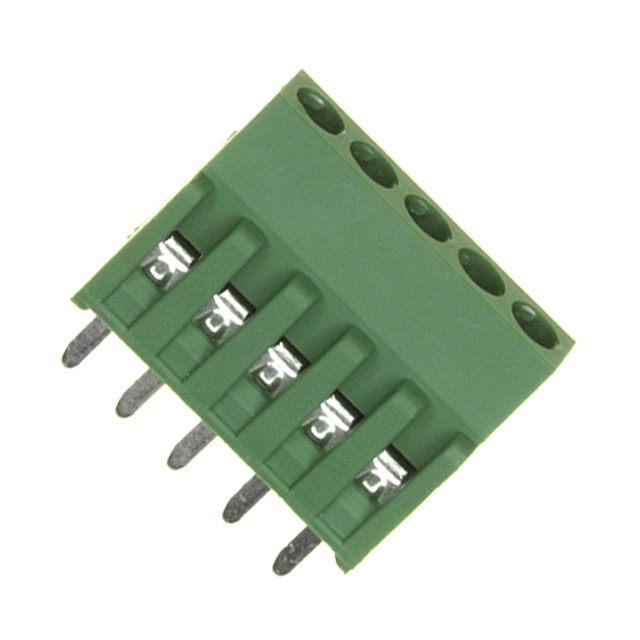

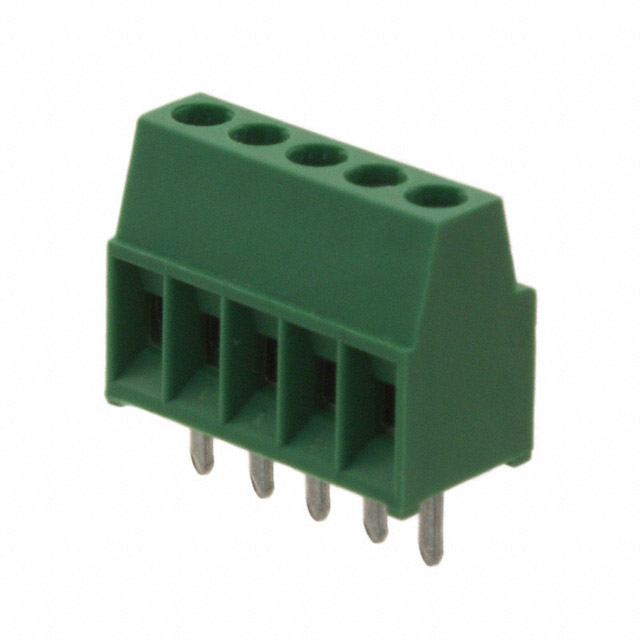

The is a 5-position 1 row 2.54mm PCB mount Terminal Block with tin-plated brass contact, nickel-plated brass screw, polyamide 6.6 GF green housing. Receptacle connector, vertical mounting angle, through right angle orientation, screw wire connection method, M1.6 screw and 30 to 16AWG wire range.

.

Side wire entry angle

得捷:
TERM BLK 5P SIDE ENT 2.54MM PCB

立创商城:
2.54mm 排数:1 每排P数:5

贸泽:
Fixed Terminal Blocks T-BLK 0254 05P S/E GRN 30-16

e络盟:
线至板接线端子, 5 路, 150 V, 10 A, 30 AWG, 16 AWG, 1.4 mm²

艾睿:
Say goodbye to wires becoming undone by using this eurostyle block 282834-5 PCB terminal block developed by TE Connectivity. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a maximum voltage rating of 150 VAC. 282834-5 is housed in polyamide 6/6. This device has a maximum current rating of 10 A/contact. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 12.16 mm long, 10 mm tall and 6.5 mm deep. Its wire is 16-30 AWG. It uses the solder termination method.

Allied Electronics:
Buchanan; Conn; Term Blk; PCB; 5; 2.54mm; Front; 30-16 AWG; Green; 10 A; 150 V

安富利:
Conn Terminal Block 5 POS 2.54mm Solder ST Thru-Hole 10A/Contact

Chip1Stop:
Conn Eurostyle Block 5 POS 2.54mm Solder ST Thru-Hole 10A/Contact Carton

Verical:
Conn Eurostyle Block HDR 5 POS 2.54mm Solder ST Thru-Hole 10A/Contact Carton

Newark:
Wire-To-Board Terminal Block, 2.54 mm, 5 Positions, 30 AWG, 16 AWG, 1.4 mm², Screw

MASTER:
TERMINAL BLOCK PCB MOUNT SIDE WIRE ENTRY STACKING 2.54mm PITCH

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK PCB MOUNT, 90 5P.

Electro Sonic:
TERMI-BLOK PCB MOUNT, 90 5P.
