2941374

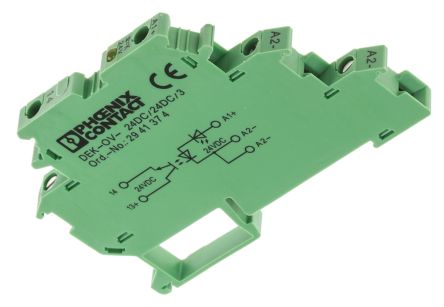

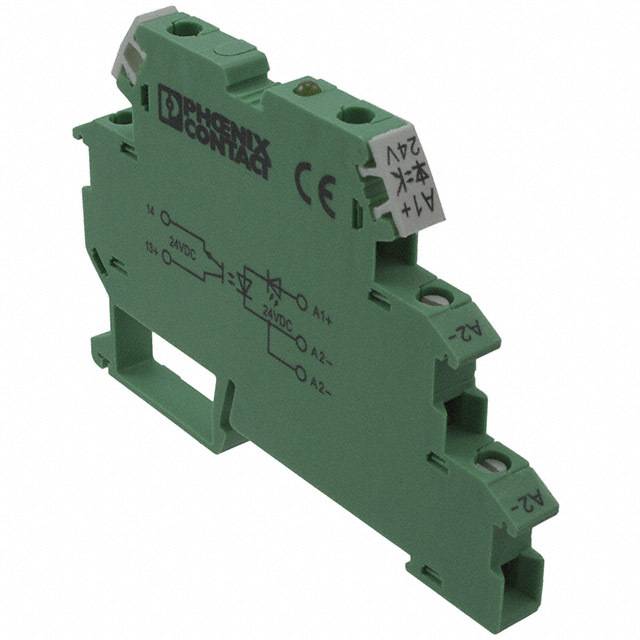

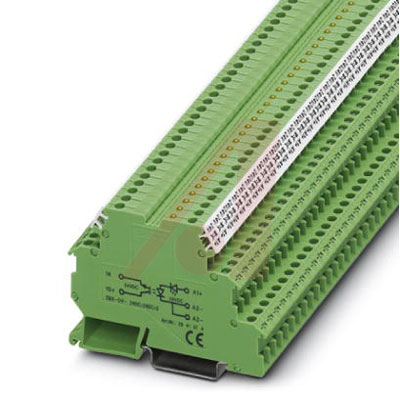

PHOENIX CONTACT  2941374  固态继电器, 3 A, DIN轨安装, 螺丝, 3 VDC, 30 VDC

直流/直流，直流/交流和交流/直流光耦合器

这些 DIN 导轨安装光耦合器在确保自身输入输出之间电气隔离的同时提供了设备输入或输出信号的理想方式。 换句话说，这些光耦合器可通过对输入、输出或对两者同时进行电气隔离来保护设备。 直流/交流型和交流/直流型还提供一种连接（同时隔离）交流和直流控制电压的方法。

提供直流输入/直流输出，直流输入/交流输出和交流输入/直流输出型

提供切换速度高达 100kHz 的型号

2.5kV 交流输入到输出隔离

LED 状态指示

模块宽度 6.2mm

工作温度范围:- 20 至 +60°C

### 标准

IEC 60 664, IEC 60 664A, DIN VDE 0110

欧时:
Phoenix Contact DEK-OV 系列 24 V 7 mA 光耦合器 2941374, 2.5kV隔离电压, DIN 导轨安装

得捷:
SSR RELAY SPST-NO 3A 3-30V

贸泽:
Solid State Relays - Industrial Mount DEK-OV- 24DC/24DC/3

e络盟:
固态继电器, 3 A, DIN轨安装, 螺丝, 3 VDC, 30 VDC

艾睿:
This power optocoupler terminal blocks 2941374 PCB terminal block manufactured from Phoenix Contact will connect wires together. This F connector has 5 F contacts. It has a female type gender. This is a 5-row connector. It has a maximum voltage rating of 24 VDC. Its wire is 14-24 AWG. This product is 80 mm long, 56 mm tall and 6.2 mm deep. It uses the screw termination method. This quick disconnect terminal has an operating temperature of -20 to 60 °C.

Allied Electronics:
Conn; Term Blk; Power optocoupler; 24VDC Input; 3-30VDC, 3A output; 6.2mm W

Verical:
Conn Power Optocoupler Terminal Blocks F 5 POS Screw

Newark:
# PHOENIX CONTACT  2941374  Solid State Relay, 3 A, DIN Rail, Screw, 3 VDC, 30 VDC

MASTER:
Power solid-state relay terminal block - input: 24 V DC - output: 3 - 30 V DC/3 A - terminal block width: 6.2 mm

Electro Sonic:
Power solid-state relay terminal block - input: 24 V DC - output: 3 - 30 V DC/3 A - terminal ...
