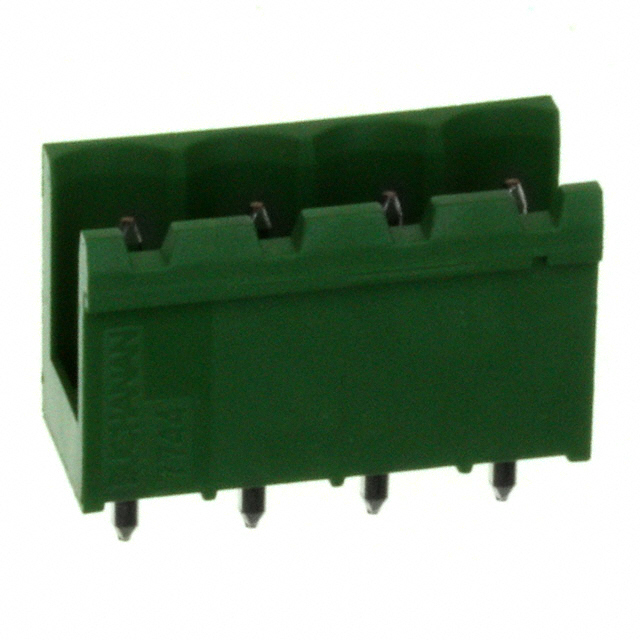

282822-4

TE CONNECTIVITY / BUCHANAN  282822-4  多极连接器

TERMI-BLOK HEADER,ASSY90 4P.

Product Highlights

Connector

Connector Type = Header

Shrouded

Housing Color = Green

Side Stackable

得捷:
TERM BLOCK HDR 4POS VERT 5MM

e络盟:
多极连接器

艾睿:
This shrouded 282822-4 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with tin. It has a maximum voltage rating of 300 VAC. Its pitch is 5 mm. It has a header type gender. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 15 A/contact. 282822-4 is housed in green polyamide 6/6. It uses the solder termination method. This product is 20 mm long, 12 mm tall and 8.35 mm deep.

安富利:
Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header 2 Sides HDR 4 POS 5mm Solder ST Thru-Hole

MASTER:
TERMINAL BLOCK HEADER ASSEMBLY 180 DEG OPEN ENDS, STACKING 5mm PITCH

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK HEADER,ASSY90 4P.

Electro Sonic:
TERMI-BLOK HEADER,ASSY90 4P.
