MINI POWER 电源Mini Power 电源设备适合在测量和控制技术应用中使用。服务友好型连接技术 带编码的 COMBICON 插头连接器 ### 开关模式 - Phoenix Contact 单相和三相电源多种电源,基于其技术属性和有竞争性的价格,非常适合面板制作人员、标准机床生产、替代现有电源或类似应用。

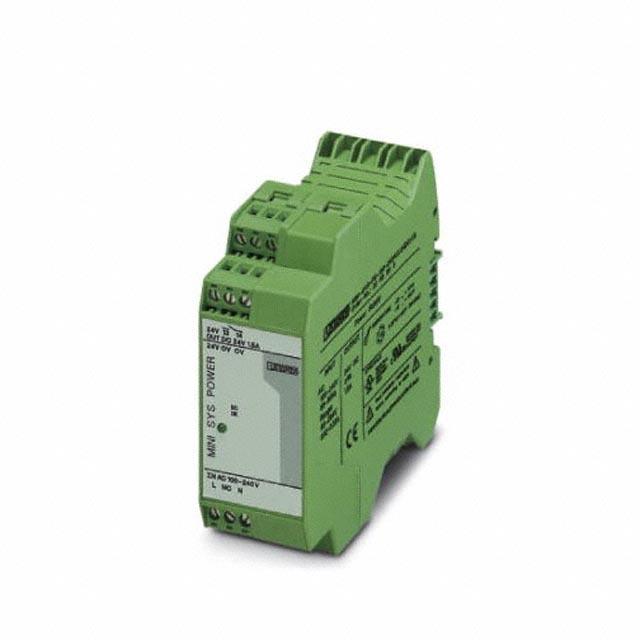

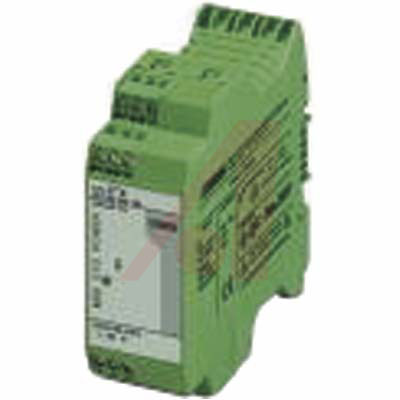

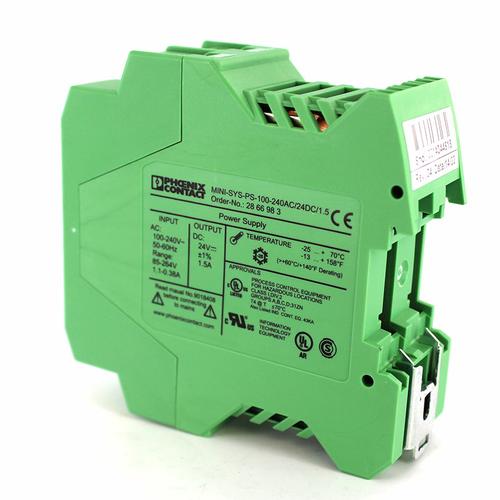

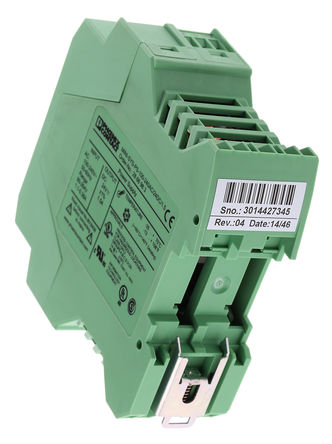

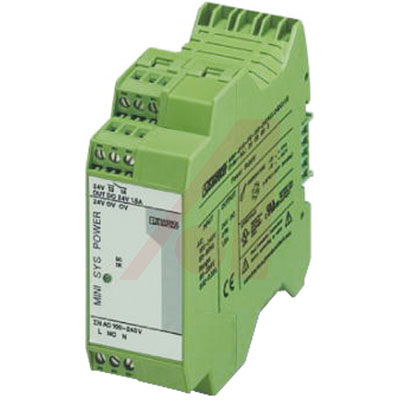

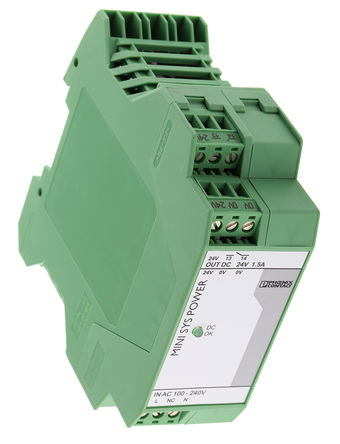

With the MINI-SYS-PS power supply, additional modules can be supplied with 24 DC using the optional DIN rail connectors. The low design depth of 95 mm is a particular advantage for use in surroundings with a low height. The system power supply particularly simplifies the power supply of the FO transmission system PSI-MOS as well as of the analog 6 mm MCR measuring transducer. In this way it emphasizes the seamless character of the INTERFACE product range.
Even without the DIN rail connector, the flat power supply unit 24 V/1.5 A is suitable for many applications in areas in which space is restricted, as the housing is 12 mm flatter than other comparable solutions.
The electronic short circuit and idling-proof device is connected to single-phase AC networks with nominal voltages of 100 V AC to 240 V AC or to two of the phase conductors of three-phase networks with a linked voltage of this value. In the event of a malfunction, the output voltage is limited to 30 V DC.
Due to the U/I characteristic curve with POWER BOOST, miniature circuit breakers blow reliably. For function monitoring, there is the floating DC OK output and the DC OK LED. High operational reliability is provided by the mains failure bridging time of more than 20 ms under full load.
Ambient temperatures can be in the range of -25°C to +70°C, whereby the power reserve of approx. 25% up to 40°C is permanently available.
额定电流 1.5 A
额定功率 36 W
输出接口数 1
输出电压 24 V
输出电流 1.5 A
输出功率 36 W
隔离电压 4 kV
输入电压Max 264 VAC
输入电压Min 85 VAC
输入电压AC Max 240 V
输入电压AC Min 100 V
输出电压Max 24 VDC
输出电压Min 24 VDC
输出电流Max 1.5 A
工作温度Max 60 ℃
工作温度Min -20 ℃
输入电压 100VAC ~ 240VAC
安装方式 DIN Rail
封装 100
长度 95 mm
宽度 35 mm
高度 99 mm
封装 100
重量 0.25 kg
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504407001
