2-1571550-4

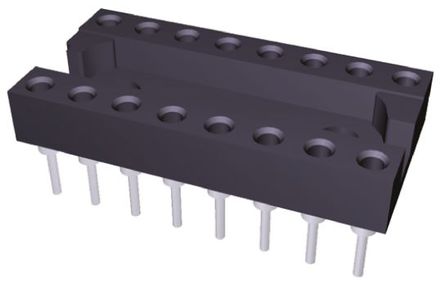

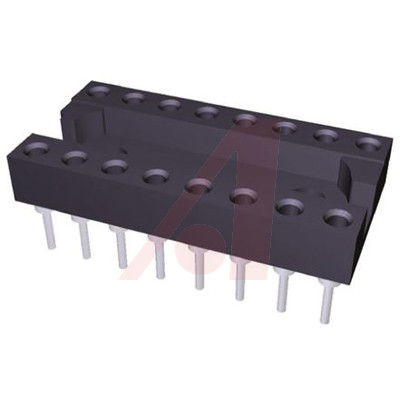

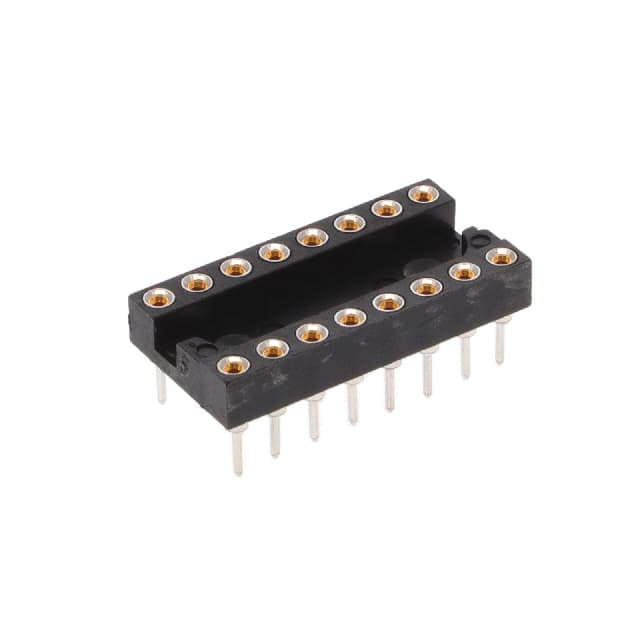

TE CONNECTIVITY  2-1571550-4  芯片插座, DIP, 16路

印刷电路板 DIP 插座 - Augat 500系列

一系列 PCB DIP IC 插座，具有 2.54mm 中心线和 7.62 mm 排 到排行间距，带 UL 94V-0 级热塑性封闭框架绝缘体。 这些印刷电路板 DIP 插座的触点镀金，采用四指配接。

这些 PCB DIP 插座，具有如下压印或机制触点：

782-9968 具有螺钉机制

782-9956 具有压印成形

798-1537 具有螺钉机制

得捷:
CONN IC DIP SOCKET 16POS GOLD

欧时:
TE Connectivity 16 路 2.54mm 节距 通孔 车削引脚 封闭式框架 DIL 插座 2-1571550-4

e络盟:
插座, DIP 插座, 16路, 通孔

艾睿:
This dip socket 2-1571550-4 connector socket from TE Connectivity expands your design options by giving you a strong and tight connection for multi-wired cables. This SKT connector&s;s 16 contacts that are made out of beryllium copper and plated with gold over nickel. It has a socket type gender. It has a straight body orientation. Its pitch is 2.54 mm. This is a 2-row connector. 2-1571550-4 is housed in polyester. This device has a maximum current rating of 3 A/contact. This product is 20.32 mm long and 10.16 mm. It uses the solder termination method. It is insulated with polyester. This connector socket has an operating temperature of -55 to 105 °C.

Allied Electronics:
Conn; IC Socket; DIP; 16; Closed; 500 Series; Solder; 0.3"; 0.1" Pin Spcng; Straight; 3A

安富利:
Conn DIP Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube

Chip1Stop:
Conn DIP Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Box/Tube

Newark:
IC & Component Socket, 500 Series, DIP Socket, 16 Contacts, 2.54 mm, 7.62 mm, Gold Plated Contacts

MASTER:
CLOSED FRAME DIP, PREMIUM LEAD FREE REF AUGAT 500 SERIES PREMIUM MACHINED CONTACT

Powell:
DIP Sockets

Online Components:
CLOSED FRAME DIP, PREMIUM LEAD FREE REF AUGAT 500 SERIES PREMIUM MACHINED CONTACT

Electro Sonic:
516-AG11D-LF=500 DIP,PCB,AU/SN
